Quick Details
Description
- Condition: New
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Meida
- Model Number: MD-
- Rated Loading Capacity(kg): 100kg-600kg
- Hoisting Speed: 4-6m/min
- Max Lifting Height: 14000mm
- Dimension(L*W*H): 2200*1200*1000
- Loder Weight: 100kg-600kg
- After-sales Service Provided: Engineers available to service machinery overseas

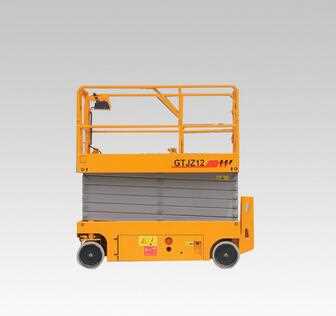

- Lift Mechanism: Scissor lift
- Lift Drive: Hydraulic
- Power: 2.2kw
- Certification: ISO9001
- Warranty: 12 Months
- Voltage: Local voltage
- Application: Aerial working
- Material: Mn Steel
- Type: wheeled / fixed
- Color: as customized
Product description:
1)The product is controlled based on the imported intelligent technology.
2)It is powered by DC, can be controlled by manually. It can move automatically and the moving speed is adjustable.
3)It can climb a gradient very well.
4)The recharge will restrict the rising of the platform.
5)The driving motor has the automatic braking function.
6)The emergent drop will be locked.
7)The malfunction can be diagnosed automatically and the maintenance is very convenient.
|
Model
|
platform size(L.W)mm
|
Dimensions (L*W*H)mm
|
guardrail height(mm)
|
lifting height(m)
|
Lifting load(KG)
|
weight(KG)
|
|
MD0.3-4
|
1500x750
|
1700x900x1100
|
1050
|
4
|
300
|
400
|
|
MD0.3-6
|
1500x750
|
1700x900x1290
|
1050
|
6
|
300
|
650
|
|
MD0.3-8 small wheel
|
1640x750
|
1850x900x750
|
1050
|
8
|
300
|
950
|
|
MD0.3-8 big wheel
|
1800x1200
|
2300x1500x1410
|
1050
|
8
|
300
|
1300
|
|
MD0.5-8
|
1800x1200
|
2300x1500x1450
|
1050
|
8
|
500
|
1500
|
|
MD0.8-8
|
1800x1200
|
2300x1500x1530
|
1050
|
8
|
800
|
1700
|
|
MD0.3-10
|
2120x1200
|
2600x1500x1530
|
1050
|
10
|
300
|
1500
|
|
MD0.3-12
|
2530x1500
|
2950x1950x1740
|
1050
|
12
|
300
|
2380
|
|
MD0.3-14
|
2950x1500
|
3550x1950x1800
|
1050
|
14
|
300
|
3000
|
|
MD0.3-16
|
3150x1500
|
3700x1980x2030
|
1050
|
16
|
300
|
3600
|
|
MD0.3-18
|
3500x1800
|
4010x2000x2200
|
1050
|
18
|
300
|
4700
|
