Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: meida or OEM
- Model Number: Fixed Lifting Platform
- printing Color: OEM
- shape: Scissor
- power: two -phase , three-phase
- moving: solid
- wheels: no wheels
- handle: no
- Guardrail: assembled
- support holder: 4 pcs
- useage: warehouse, station, wharf

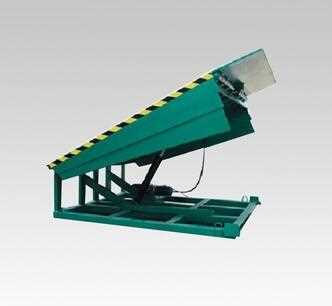

The Dock leveler /Hydraulic dock ramp is generally equipped with anti dropping, overload, power outages and other safety protection device, guide rail type external power unit, import and export table by lanyards or bar, guardrail and a lifting table operation warning lamp or an alarm bell, the door is opened when the lifting table circuit shuts down the safety switch and many other features. Extremely easy to operate the staff of the work layer, multi point control, point move or safe mode operation.
The dock leveler /hydraulic dock ramp advantage :
1. Dock ramp is the auxiliary equipment for cargo loading and lifting.
2. It is widly used in warehouse, station, wharf,postal transportation, logistics stribution etc.
3. Advanced technology increase the effeciency and safety of the loading jobs.
4. It is classified to five kinds by carrying-weight capacity, such as 6T,8T,10T,12T and 15T.
5. It also can be designed and produced according to customers’ requirements.
|
Model
|
platform size(L.W)mm
|
PIT SIZE(L*W*H)mm
|
stroke(mm) acclivity/declination
|
power kg
|
Lifting load(KG)
|
|
MDCQ6-0.55
|
2000x2000
|
2080x2040x600
|
300/250
|
0.75
|
6000
|
|
MDCQ6-0.7
|
2500x2000
|
2580x2040x600
|
400/300
|
0.75
|
6000
|
|
MDCQ8-0.55
|
2000x2000
|
2080x2040x600
|
300/250
|
0.75
|
8000
|
|
MDCQ8-0.7
|
2500x2000
|
2580x2040x600
|
400/300
|
0.75
|
8000
|
|
MDCQ10-0.55
|
2000x2000
|
2080x2040x600
|
300/250
|
0.75
|
10000
|
|
MDCQ10-0.7
|
2500x2000
|
2580x2040x600
|
400/300
|
0.75
|
10000
|
Shandong Meida Heavy Industry Machine Co.,Ltd is located in Yimeng tourism resort, Yishui Economic Development Zone, Shandong province, China. Company register capital is 20 million CNY. This is a comprehensive company mainly in manufacturing and selling construction machinery******pany has always pursued on strengthening quality management, insist on continuous improvement to ensure the quality of the product safety.
Our main products are as follows:QTZ35\QTZ40\QTZ63 the variable-frequency series hydraulic Zisheng tower crane\SC100/100\SC200/200 series construction lifter\JZM350-200 series blender\JS500-2000 series blender\PL600-3200 series concrete batching machine\HBT40-80 series concrete pump.Our products have high praise by domestic customers consistent.At the same time, we actively expand the international market, now the main market for the Middle East, southeast Asia, Africa, eastern Europe, etc.To meet the demand of the international market,we now have ISO certicate, the TS16949:2002 quality system certification, special equipment certificate,building materials equipment professional committee membership certificate.
Our development goal is sustainable development,customers' satisfaction is the motivation to enhance ourselves. We provide our high quality\maximum value products and services,we obtain the understand\respect and support from the good faith and strength.Our goal is that reduce the customers' purchasing cost and risk,protect the customers' investment.
Over the past few years through constant innovation, the company has advanced production and process, it is trusted by the masses of users. Shandong Meida Heavy Industry Machine Co.,Ltd will product high quality goods and cherish talents consistently, sincerely with the masses of customers hand in hand to create brilliant tomorrow.
