Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: meida or OEM
- Model Number: SJG0.3-4 Mobile scissor lift table
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 300kg
- Min. Lifting Height: 1.1m
- Max. Lifting Height: 4m
- Table Size: 1500x750mm
- Overall Dimensions: 1700x900x1100 mm
- Weight: 1250kgs
- Certification: ISO ,BV,SGS
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- model number: LIFT PLATFORM
- Color: can do customer order
- weight: 400kgs
- Guardrail height: 1050mm
- guardrail: according clients demand
- useage: factories , offices , shops ,building decoration industry
- shape: scissor
- power: tow -phased , three-phase
- style: mobile lift table
- wheels: 4

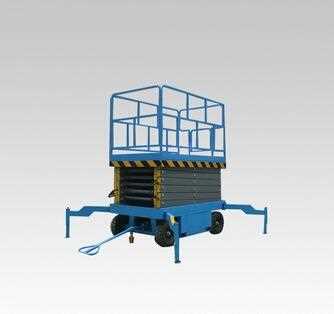

Hydraulic Mobile Scissor Lift Table High-altitude Work Table Lifting Platform
Mobile scissor lift tables are artificial -traction ; the power has two -phased and three-phase supply ; it is electric controlling . In addition , it has hand pressure pump. It has the characteristics of flexible movement , stable lifting , and convenient operation . This series of mobile lifting platforms are very suitable for factories , offices , shops and building decoration industry , and can also be disposed generator configuration munual pump, diesel engine , gasoline engine.etc .
MOBILE SCISSOR LIFT TABLE ADVANTAGE :
Proper lifting reduces product damage and worker fatigue and injury
Standard 380V power for use in almost any warehouse or garage
Pushbutton power control for effortless operation
Heavy-duty hydraulic cylinders with chrome plated rams
Polyurethane seals on cylinders
Liftime lubricated bearing on all rollers and pivot points
Fexible and useage are widely .
MBILE SCISSOR LIFT TABLE DATA :
|
Model
|
platform size(L.W)mm
|
Dimensions (L*W*H)mm
|
guardrail height(mm)
|
lifting height(m)
|
Lifting load(KG)
|
weight(KG)
|
Power
|
|
MD0.3-4
|
1500x750
|
1700x900x1100
|
1050
|
4
|
300
|
400
|
380v/2.2kw
|
|
MD0.3-6
|
1500x750
|
1700x900x1290
|
1050
|
6
|
300
|
650
|
380v/2.2kw
|
|
MD0.3-8 small wheel
|
1640x750
|
1850x900x750
|
1050
|
8
|
300
|
950
|
380v/2.2kw
|
|
MD0.3-8 big wheel
|
1800x1200
|
2300x1500x1410
|
1050
|
8
|
300
|
1300
|
380v/2.2kw
|
|
MD0.5-8
|
1800x1200
|
2300x1500x1450
|
1050
|
8
|
500
|
1500
|
380v/2.2kw
|
|
MD0.8-8
|
1800x1200
|
2300x1500x1530
|
1050
|
8
|
800
|
1700
|
380v/2.2kw
|
|
MD0.3-10
|
2120x1200
|
2600x1500x1530
|
1050
|
10
|
300
|
1500
|
380v/2.2kw
|
|
MD0.3-12
|
2530x1500
|
2950x1950x1740
|
1050
|
12
|
300
|
2380
|
380v/3kw
|
|
MD0.3-14
|
2950x1500
|
3550x1950x1800
|
1050
|
14
|
300
|
3000
|
380v/3kw
|
|
MD0.3-16
|
3150x1500
|
3700x1980x2030
|
1050
|
16
|
300
|
3600
|
380v/3kw
|
|
MD0.3-18
|
3500x1800
|
4010x2000x2200
|
1050
|
18
|
300
|
4700
|
380v/3kw
|

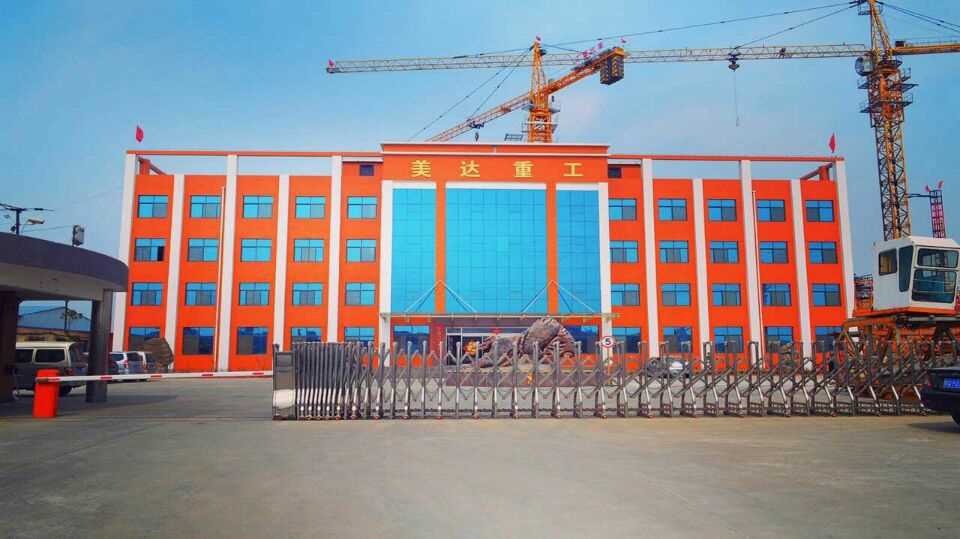

Shandong Meida Heavy Industry Machine Co.,Ltd is located in Yimeng tourism resort, Yishui Economic Development Zone, Shandong province, China. Company register capital is 20 million CNY. This is a comprehensive company mainly in manufacturing and selling construction machinery******pany has always pursued on strengthening quality management, insist on continuous improvement to ensure the quality of the product safety.
Our main products are as follows:QTZ35\QTZ40\QTZ63 the variable-frequency series hydraulic Zisheng tower crane\SC100/100\SC200/200 series construction lifter\JZM350-200 series blender\JS500-2000 series blender\PL600-3200 series concrete batching machine\HBT40-80 series concrete pump.Our products have high praise by domestic customers consistent.At the same time, we actively expand the international market, now the main market for the Middle East, southeast Asia, Africa, eastern Europe, etc.To meet the demand of the international market,we now have ISO certicate, the TS16949:2002 quality system certification, special equipment certificate,building materials equipment professional committee membership certificate.
Our development goal is sustainable development,customers' satisfaction is the motivation to enhance ourselves. We provide our high quality\maximum value products and services,we obtain the understand\respect and support from the good faith and strength.Our goal is that reduce the customers' purchasing cost and risk,protect the customers' investment.
Over the past few years through constant innovation, the company has advanced production and process, it is trusted by the masses of users. Shandong Meida Heavy Industry Machine Co.,Ltd will product high quality goods and cherish talents consistently, sincerely with the masses of customers hand in hand to create brilliant tomorrow.
