Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: YIKA
- Model Number: HY10WZ-216/562, HY10WZ-216/618

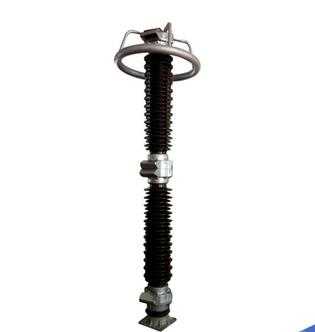

- type: Substation Type Surge Arrester 220KV
- Housing: Porcelain
- color: gray, red
- standard: IEC60099-4
- packing: wooden box
- port: Ningbo,Shanghai
- OEM production: accept
Normal operating conditions for Surge Arrester :
1. The ambient air temperature is no higher than +40°C, no lower than -40 °C .
2. The altitude above sea level does not exceed 1000m. ( the plateau area should be indicated when order.)
3. AC system frequency is 50Hz or 60Hz.
4. Power frequency voltage brought to bear on arrester for a long time does not exceed the continuous operation voltage of the arrester.
5. Maximum wind speed does not exceed 35m/s.
6. Te earthquake intensity does not exceed 7 degrees.
7. The pollution area should be indicated.
|
Gapless Arrester Electrical Parameter
|
|
Type
|
Rated Voltage
|
MCOV
|
Max.Residual Viltage
|
2ms square wave impulse withstand current
|
High current impulse withstand 4/10μs
|
|
Steep current impuise1/4μS
|
Switching current lmpulse30/60μs
|
Nominal
current lmpulse 8/20μs
|
|
kV
|
kV
|
kV
|
kV
|
kV
|
A
|
kA
|
|
Y10WZ-192/500
|
192
|
150.0
|
560.0
|
500.0
|
426
|
800
|
100
|
|
Y10WZ-200/520
|
200.0
|
156.0
|
582.0
|
520.0
|
442.0
|
800
|
100
|
|
Y10WZ-204/532
|
204.0
|
159.0
|
594.0
|
532.0
|
452.0
|
800
|
100
|
|
Y10WZ-216/562
|
216.0
|
168.5
|
630.0
|
562.0
|
478.0
|
800
|
100
|
1. The ambient air temperature is no higher than +40°C, no lower than -40 °C .
2. The altitude above sea level does not exceed 1000m. ( the plateau area should be indicated when order.)
3. AC system frequency is 50Hz or 60Hz.
