Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: YIKA
- Model Number: Y5WZ-100/260, Y10WZ-100/260

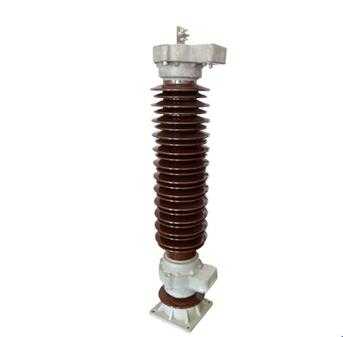

- type: 110KV Porcelain Lightning Arrester Substation 110KV Surge Arrester
- Housing: porcelain
- color: brown
- standard: IEC60099-4
- packing: wooden box
- port: Ningbo,Shanghai
- OEM production: accept
Normal operating conditions for Lightning Arrester :
1. The ambient air temperature is no higher than +40°C, no lower than -40 °C .
2. The altitude above sea level does not exceed 1000m. ( the plateau area should be indicated when order.)
3. AC system frequency is 50Hz or 60Hz.
4. Power frequency voltage brought to bear on arrester for a long time does not exceed the continuous operation voltage of the arrester.
5. Maximum wind speed does not exceed 35m/s.
6. Te earthquake intensity does not exceed 7 degrees.
7. The pollution area should be indicated.
|
Gapless Arrester Electrical Parameter
|
|
Type
|
Rated Voltage
|
MCOV
|
Max.Residual Viltage
|
2ms square wave impulse withstand current
|
High current impulse withstand 4/10μs
|
|
Steep current impuise1/4μS
|
Switching current lmpulse30/60μs
|
Nominal
current lmpulse 8/20μs
|
|
kV
|
kV
|
kV
|
kV
|
kV
|
A
|
kA
|
|
Y5WZ-100/260
|
100
|
78
|
299
|
260
|
221
|
600
|
100
|
|
Y10WZ-100/260
|
100
|
78
|
299
|
260
|
221
|
600
|
100
|
|
Y10WZ-126/328
|
126KV
|
95.8
|
367
|
328
|
279
|
600
|
100
|
Wenzhou Yika Electric Co.,Ltd. is a manufacturer of Fuse Cutout, Lightning Arrester, Insulator, Disconnector Switch, Circuit Breaker, Ring Main Unit etc. with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Electricity Distribution System and Substation and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
