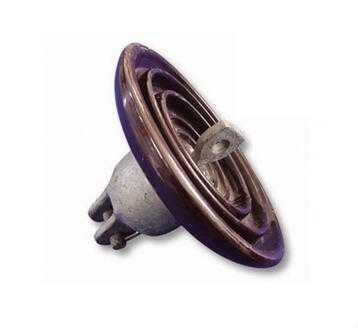

11KV 70KN High Voltage Anti-fog Disc Ceramic Porcelain Insulator

Application: High Voltage; Rated Voltage: 11KV; Tensile Strength: 70KN; type: Electrical Ceramic Insulators;

Send Inquiry Add to My Favorites

Product Details

Quick Details

Description

Place of Origin: Zhejiang, China (Mainland)
Brand Name: YIKA
Model Number: 52-4
Type: Insulator
Material: Porcelain
Application: High Voltage
Rated Voltage: 11KV
Tensile Strength: 70KN
type: Electrical Ceramic Insulators
material: Porcelain
color: gray, brown
Spindle material: galvanized steel
standard: ANSI
packing: carton / wooden box
OEM production: accept
Port: Ningbo, Shanghai, Fuzhou

Class ANSI	Main Demension in (mm)		leak- age Dist- ance in (mm)	Com- bined M & E Stre- ngth b(KN)	Mceb anical Impact Strenth in-1b(N-m)	Time Load Test Value 1b (KN)	Average Flashover Voltage				Power Freq- uaency Punc- ture Voltage KV	Radio influence Voltage
	D(max)	F					Power Frequ- ency		Critcal Impulse			Test Volt- age To Gro- und KV	Max Riv At 1MHz V
	D(max)	F					Dry kv	Wet kv	Positive kv	Nag- ative kv		Test Volt- age To Gro- und KV	Max Riv At 1MHz V
52-1	61/2 (165)	51/2 (141)	7(178)	10000 (44)	45(5.0)	6000 (27)	60	30	100	100	80	7.5	50
52-2	8 (203)	53/4 (146)	81/4 (210)	15000 (67)	50(5.5)	10000 (44)	65	35	115	115	90	7.5	50
52-3	103/4 (273)	53/4 (146)	111/2 (292)	15000 (67)	5.5(6.0)	10000 (44)	80	50	125	130	110	10	50
52-4	103/4 (273)	53/4 (146)	111/2 (292)	15000 (67)	5.5(6.0)	10000 (44)	80	50	125	130	110	10	50
52-5	103/4 (273)	53/4 (146)	11 (279)	25000 (111)	60(7.0)	15000 (67)	80	50	125	130	110	10	50
52-6	103/4 (273)	53/4 (146)	11 (279)	25000 (111)	60(7.0)	15000 (67)	80	50	125	130	110	10	50
52-9	41/2 (114)	61/4 (160)	63/4 (171)	10000 (44)	45(5.0)	6000 (27)	80	30	100	90	80	7.5	50

11KV 70KN High Voltage Anti-fog Disc Ceramic Porcelain Insulator
