Quick Details
Description
- Model NO.: GCS
- Shell Material: Steel Plate
- Structure: Cabinet, Protection
- Form: Partly-welded Type
- Size: 1 Uint
- Shell Protection Grade: IP23
- Trademark: SHANGHAI ELECTRIC
- Origin: Shanghai
- Certification: CCC, ISO9001:2000
- Voltage Level: Low Voltage
- Type: Power
- Operation Voltage: Low Voltage
- Application Range: High-rise Buildings
- Brand: Shanghai Electric
- Specification: 600*800*400
- HS Code: 85372090

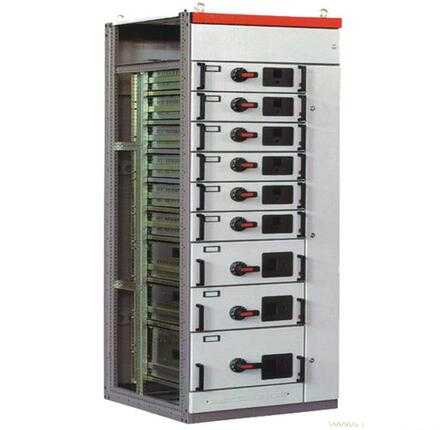

GCS complete set low-voltage drawout switchgear panel is applied to 3-phase AC 50(60) Hz @rated operating voltage of 400V(660V), rated current of 4000A and below for power generation and supply, motor control and reactive power compensation. The device is widely used in the power distribution system of power plants, oil, chemical, metallugical and textile industry. It is designed and manufactured by complying with GB7251.12-2013.
|
No.
|
Item
|
Parameter
|
|
1
|
Main circuit voltage rating(V)
|
AC 380,400,660
|
|
2
|
Auxiliary circuit voltage rating(V)
|
AC 220,380,400; DC 110,220
|
|
3
|
Rated frequency(Hz)
|
50/60
|
|
4
|
Rated insulation voltage (V)
|
660,1000
|
|
5
|
Horizontal busbar current rating(A)
|
≤4000
|
|
6
|
Vertical busbar(MCC) current rating(A)
|
1000
|
|
7
|
Busbar short-time withstand current rating(kA/1s)
|
50,80
|
|
8
|
Busbar peak value withstand current rating(kA/0.1s)
|
150,176
|
|
9
|
Main circuit power freq. test voltage(V/1min.)
|
2500
|
|
10
|
Auxiliary circuit power freq. test voltage(V/1min.)
|
1760
|
|
11
|
Three phase four wire system busbar
|
A,B,C,PEN
|
|
12
|
Three phase five wire system busbar
|
A,B,C,PEN
|
|
13
|
Protection degree
|
IP30,IP40
|
Shanghai Electric Group Co., Ltd(Shanghai Electric) since 1936.
Members of goverment mechanical ministry
Key enterprises of Shanghai
We are one of the earliest manufacturer of electrical equipment in China
We used cooperate with German Stahl, Siemens and Mannesmann, American Westinghouse, Timage, turbine air systems, Wyman-Gordon forgings, France Schneider, Italian Dalmine, ABB Switzerland, Spain Tubacex, Japan Mitsubishi etc famous international company
Our company was ISO9001/ISO14001/OHSAS18001 approval
Group has sucess project for Qinshan nuclear power plant, the YANGZI RIVER project, Pudong International Airport, Baosteel Group, Shengli Oilfield, the Oriental TV Tower, Nepal conference building, Iran subway, Pakistan Chashma nuclear power plant, sugar mills in Malaysia, Royal Palace of Thailand, and other domestic and foreign key projects supporting.
After 70 years of development, group have completely R&D, production, sales, contracting, engineering branch
Covering power transmission and distribution equipment manufacturing, environmental protection and energy saving products manufacturing, power generation equipment engineering contracting, import and export trade, bio medical industry of 5 big pillar, the camp pin network throughout the world more than 30 countries and regions, the group company (including member enterprise with total assets of 11.2 billion yuan, the number of employees more than 13000 people, the total output value in 2015 reached 26.5 billion yuan.
We will be a new concept, the success of the performance, solid strength, good reputation for you to build a boutique project!
