Quick Details
Description
- Type: Vacuum Packing Machine
- Condition: New
- Application: Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Bags, Film, Foil, Pouch
- Packaging Material: Plastic
- Automatic Grade: Semi-Automatic
- Driven Type: Electric
- Voltage: 220/380V
- Power: 2KW
- Place of Origin: Henan, China (Mainland)
- Brand Name: YOUNA
- Model Number: DZ-400
- Dimension(L*W*H): 1350*750*950mm
- Weight: 200KG
- Certification: ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Item: price for vacuum packing machine
- Usage: plastic bag vacuum sealing
- Model: DZ400/500/600
- Material: 304 Stainless Steel
- Chamber type: Double Chamber Automatic Vacuum Packing Machine
- voltage: 220V/380V
- Sealing Length: 400/500/600mm
- customization: Accept
- power: 2kw
- Warranty: 12 Months
Introduction

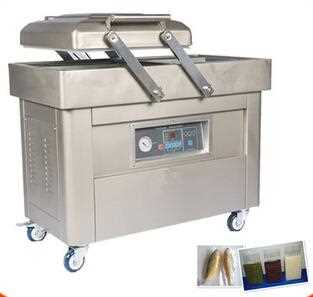

1. DZ-2SB series good price for vacuum packing machine is featured by automatic processing of vacuumize, sealing, printing, cooling, which is used in vacuum packaging for food, pharmaceutical, aquatic, chemical and electronic industries. It can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness of the product over a prolonged storage time.
2. It is featured by automatic processing of vacuuming, sealing, printing, cooling, which is used in vacuum packaging for the food ,pharmaceutical, aquatic, chemical and electronic industries.
3. vacuum packing machine double or single room is more efficiency than single chamber vacuum machine. And the machine shell conforms to the national standard of stainless steel, control panel is by far the most popular touch new button.Heat sealing time adopts digital display time relay to control.Operator can also use technology parameter to set a one-time vacuum suction, vacuum sealing and so on a series of operations.This machine is very suitable for currently on the market of small businesses.
4. If need gas filling, pls tell in advance which need customized.
Technical characteristic
1.The surface of the stainless steel casing through special craft processing, uniform, luxury.At the same time has the advantages of resistance to dirty, scratch
2. The sealing temperature and sealing time adjusting range is extensive, suitable for all kinds of different material of vacuum packaging.
3. On the control panel is equipped with the sharply stop button, if any abnormal found packaging process, press stop button, can interrupt packaging process, safe to use
4. Using high quality high power vacuum pump, vacuum effect is good.Adopt famous brand electrical components, stable performance and long service life.
5. Can be configured aeration device, can also according to customer request custom vacuum machine
Technical parameter
double chamber
|
model
|
DZ400-2SB,
DZQ400-2SB
|
DZ500-2SB,
DZQ500-2SB
|
DZ600-2SB
DZQ600-2SB
|
|
Power source
|
220V 50/60Hz
|
220V 50/60Hz
|
380V 50/60HZ
|
|
power
|
2.0KW
|
2.3KW
|
3.1KW
|
|
workroom size
|
500*450*110mm
|
570*540*110mm
|
670X540X110mm
|
|
sealing length
|
400*10mm
|
500*10mm
|
600x10mm
|
|
sealing speed
|
1-4 times/minute
|
1-4 times/minute
|
1-4times
|
|
weight
|
200kgs
|
250kgs
|
320kg
|
|
External size
|
1350*750*950mm
|
1350*850*980mm
|
1550x850x1020mm
|
single chamber vacuum packing machine
|
Model
|
DZ400-2D
|
DZ500-2D
|
|
voltage
|
220V 50/60Hz
|
220V 50/60HZ
|
|
power
|
1.5KW
|
1.6KW
|
|
workroom size
|
420X440X80mm
|
520X540X80MM
|
|
sealing length
|
400X10mm
|
500X10MM
|
|
sealing speed
|
1-4 times/minute
|
1-4 times/min
|
|
weight
|
105kgs
|
120kg
|
|
External size
|
660X600X1050mm
|
760x700x1050mm
|
