Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Bags, Barrel, Bottles, Cans, Cartons, Pouch, Stand-up Pouch
- Packaging Material: Glass, Metal, Plastic, Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V/380V
- Power: 10kw
- Place of Origin: Henan, China (Mainland)
- Brand Name: youna
- Model Number: QL5545 BS-D4520
- Dimension(L*W*H): 1760x900x1570, 1600x700x1450
- Weight: 550
- Certification: ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: automatic l sealer shrink tunnel
- Usage: sealing and shrinking
- film: pof pvc
- speed: 0-15piece/min
- auxiliary equipment: air compresspor
- customization: accept
- voltage: 220v/380v
- power: 10kw
- shipment: sea
- Warranty: 12 Months

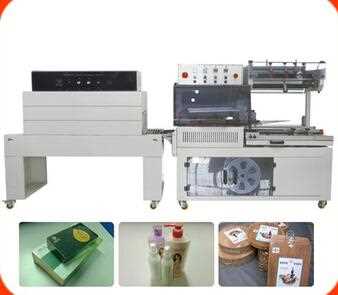

QL5545 automatic L-type sealer characteristic:
1.The sealing knife adopts copper alloy sprayed with teflon, it won't stick film, sealing fastness, without smoke, non-pollution. Horizontal and vertical sealing knife adopt whole connecting without gap, the film won't break. Sealing frame adopts high quality alloy steel, the sealing quality is stable, frame difficult to be damaged.
2. The machine has entire automatic system, it equipped with sensors can reach high speed automatic working.
3. It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.
4.it has protection function to avoid cutting wrongly and ensure the safety of operator
BS-D4520 shrink tunnel characteristic:
1 It adopts Schneider AC contactor, high-power Solid state booster and intelligent temperature controller to make
temperature system more accurate, prolong the working life.
2 It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult abraded (you can choose net type conveyor)
3 It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.
4 Inside wall adopts stainless steel, it has fast temperature transfer, even heating, low energy consumption, long working life.
application:
This automatic l sealer shrink tunnel machine with good price is widely used in foodstuff, drinks, printing, pharmaceutical, floor, hardware and other industries shrink packaging. It is suit POF, PE, PVC and other packaging material
Technical parameter
|
Model
|
QL5545
|
BS-D4520
|
|
Max packing size (mm)
|
L450×W350×H100
|
W450×H200
|
|
Max sealing size (mm)
|
L550×W450
|
/
|
|
Power(KW)
|
1.30
|
8.5
|
|
Capacity
|
0-20 pcs/min
|
0-15 pcs/min
|
|
Voltage
|
220V 50/60HZ
|
380V 50/60HZ
|
|
Sealing temperature
|
160℃—240℃
depends on thickness
of film and
environment temperature
|
160℃—240℃ depends on thickness of film and environment temperature
|
|
Thickness of film(mm)
|
0.015-0.10
|
0.015-0.10
|
|
Air pressure(Kg/cm2)
|
5
|
5
|
|
Packing material
|
POF PVC
|
POF PVC
|
|
Machine weight(kg)
|
320
|
210
|
|
Machine size(mm)
|
1760x900x1570
|
1600x700x1450
|
