Quick Details
Description
- Type: Other
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Cartons, Case
- Packaging Material: Metal, Paper, Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 1kw
- Place of Origin: Henan, China (Mainland)
- Brand Name: youna
- Model Number: FXS5050
- Weight: 390kg
- Dimension(L*W*H): 1190x1130x1530
- Certification: ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Item: automatic carton edge sealer
- Function: carton edge sealer with up and down sealing
- Model: FXS5050
- speed: 20m/min
- volt: 220V
- certification: ISO
- customization: accept
- packing: wooden case
- type: right and left convey
- Warranty: 12 Months

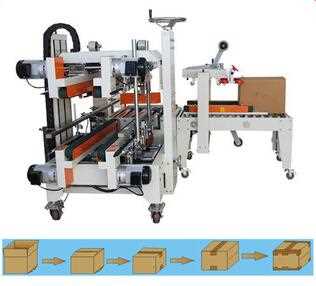

Automatic carton edge sealer machine uses adhesive tape to stick on the carton parallel 4 edges and 8 corner, it is high efficiency with beautiful sealing result.
why choose this model?
1, the automatic carton edge sealer machine adopts automatic system, equipped with photoelectric detection, with automatic, automatic alarm, etc, can realize unmanned automated operation
2, the automatic carton edge sealer machine is easy to transform the product specifications, easy to operate
3,the automatic carton edge sealer machine can be used directly with a production line
4, high quality international brand electrical components, quality is reliable
5, FXS5050 four side sealing machine adopts new sealing head structure, good sealing effect, stable With long lifetime
6, the whole machine is firm structure, the guide bar positioning reliable and simple maintenance
Technical parameter
|
Model
|
FXS5050
Auto edge sealing machine
|
FXC5050B
Carton sealing machine
|
|
Volt
|
AC220V/380V 50Hz/60 Hz
|
AC220V/50Hz
|
|
Air compressor
|
(Kg/cm2)5.5~6
|
|
|
Speed
|
(m/min) 20
|
About 1000/hour
|
|
Tape width (mm)
|
48,60,72
|
36,48,60
|
|
Table height (mm)
|
550~630
|
|
|
Min sealing size (mm)
|
L320×W200×H180
|
W120*H110
|
|
Max sealing size (mm)
|
L500×W500×H500
|
W500*H500
|
|
Convey way
|
/
|
Left and right convey
|
|
Machine size (mm)
|
L1190×W1130×H1530
|
L1890*W820*H1410
|
|
Weight (Kg)
|
390
|
124
|
