Features:
1. Clear-up,feeding and packing automatically without man-powder operation.
2. Clear-up machine and positioning feeding machine can be operated separately. They can work in synchronization with producing line, synchronous change speed, automatic stop/startup in case of material absence/supply and so on.
3. It can match Coretamp KT series packing machine.
4. To minimize secondary pollution of produts due to traditional manpower arrangement.
5. Clear-up correctly and the speed is up to 300 bags/min with high efficiency.
6. Simple frame, easy maintenance, all conveyor belts can be detached quickly without using any tool, ensuring food safe and healthy.
Function:
1) Servo intelligent drive control, low noise and smooth operation, the production environment more comfortable;
2) Fully automation,the entire process(feeding, forming, filling, sealing) is automatic;
3) User-friendly design, the use of industrial touch screen, man-machine interactive operation, parameter display and intuitive menu operation, easier to use;
4) Connection production lines, fully automatic sorting and automatic packaging from the products to finished goods, the whole process are automatic, greatly improving production efficiency;
5) Unique design, frequency control, photoelectric automatic tracking color;
6) Durable precision cutting tools, ultra-precision process horizontal sealing, vertical sealing.
Standard Specifications
1) Speed: up to 400 bags/min
2) Bag Length: 70-360mm
3) Product Height: up to 70mm;
4) Power: 220V,50Hz, 4.3kw;
5) Dimension size (mm): 6100 × 950 ×1500;
6) Weight: 1000kgs.
Function

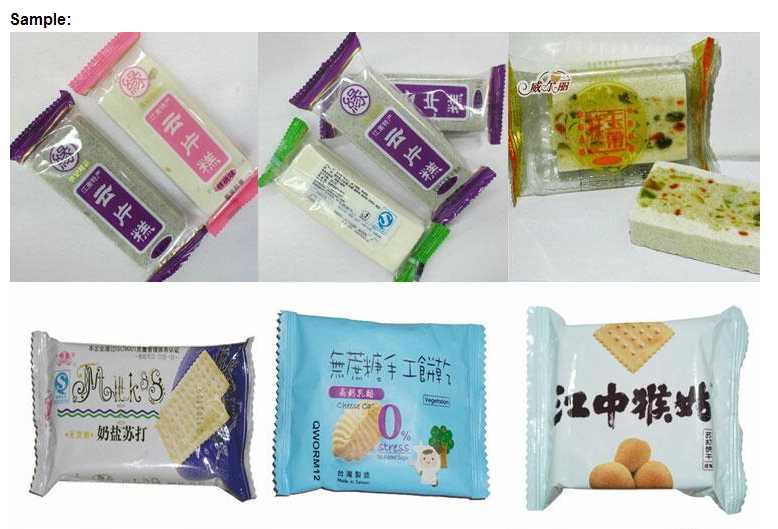

Can be applied to: Food Snack bar, Bread, Cookies, Moon Cake, Cup Cake, Chocolate, Soap..... etc
