Main Performance And Structure Features:
1.It completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),produt out-putting automatically.
2.A complete set of equipment is economical.
3.The volumetric cups can be make to open-close model measure equipment.
4.New design with perfect fashion, more reasonable structure, more advanced technology.
5.Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
6.Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for complete machine, perfect packaging.
7.With auto warning protection function to minimize loss.
8.Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
![]()

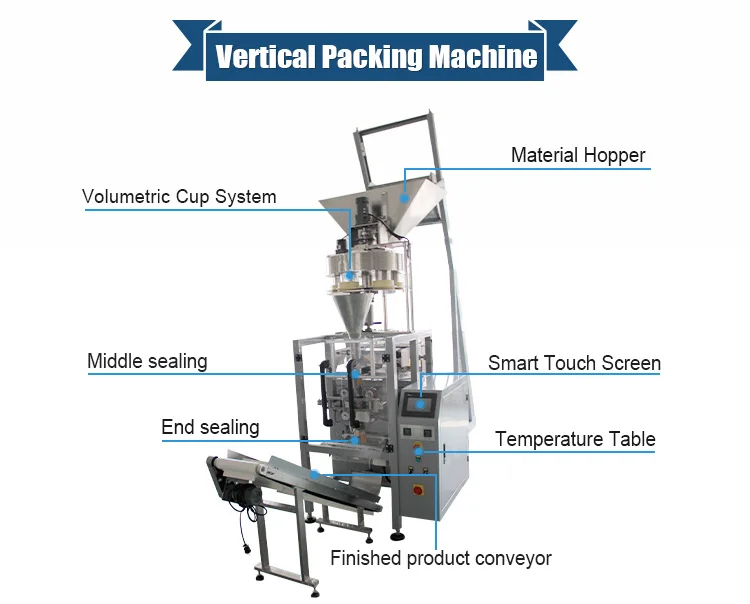

Combined Parts:
Necessary: 1. ZV series main frame 2. Measuring cups device
Optional: 3. Material elevator 4. Product conveyor
Applications:
It is suitable for non-sticky, bulk or granule medicines, foodstuff and seeds, such as chips, snack foods, granulated juice sugar, coffee, salt, melon seeds, rice, oatmeal, peanuts, loose tea leaf, fragile food, tea,desiccant, mono sodium glutamate, popcorn, and snacks etc.
![]()
![]()
Specification(Main Frame):
(We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.)
| Type |
ZV-420C |
ZV-520C |
ZV-720C |
| Film Width |
Max.420MM |
Max.520MM |
Max.720MM |
| Bag Length |
80-300MM |
80-350MM |
180-350MM |
| Bag Width |
60-200MM |
100-250MM |
100-500MM |
| Film Thickness |
0.04-0.12MM |
0.04-0.12MM |
0.04-0.12MM |
| Packaging Rate |
10-60Bag/Min |
10-60Bag/Min |
10-55Bag/Min |
| Power |
220V 50/60HZ
2KW |
220V 50/60HZ
3KW |
220V 50/60HZ
3KW |
| Machine Size |
1217*1015*1343MM |
1488*1080*1490MM |
1780*1350*2050MM |
| Machine Quality |
About 650KG
|
About 680KG |
About 750KG |
