Product Description

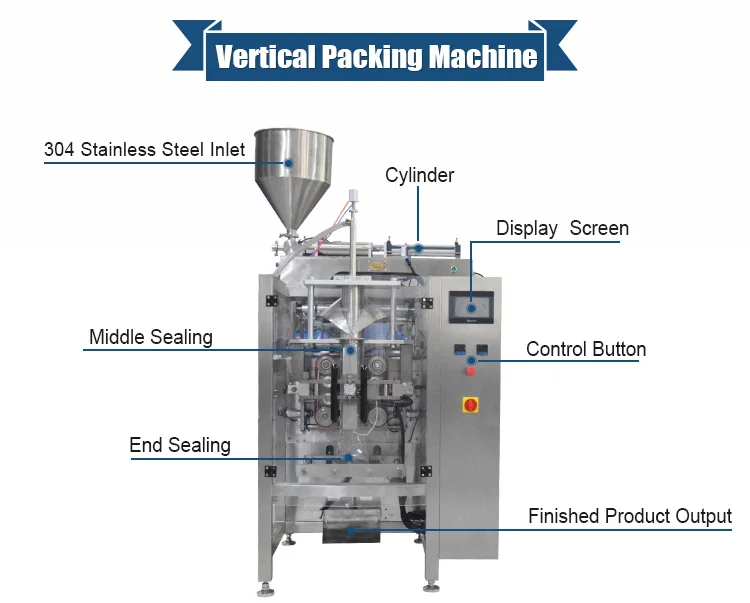

Main Performance And Structure Features:
1.The machine completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),produt out-putting automatically.
2.High precision,high efficiency without crash the materials.
3.New design with perfect fashion, more reasonable structure, more advanced technology.
4.Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
5.Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for complete machine, perfect packaging.
6.With auto warning protection function to minimize loss.

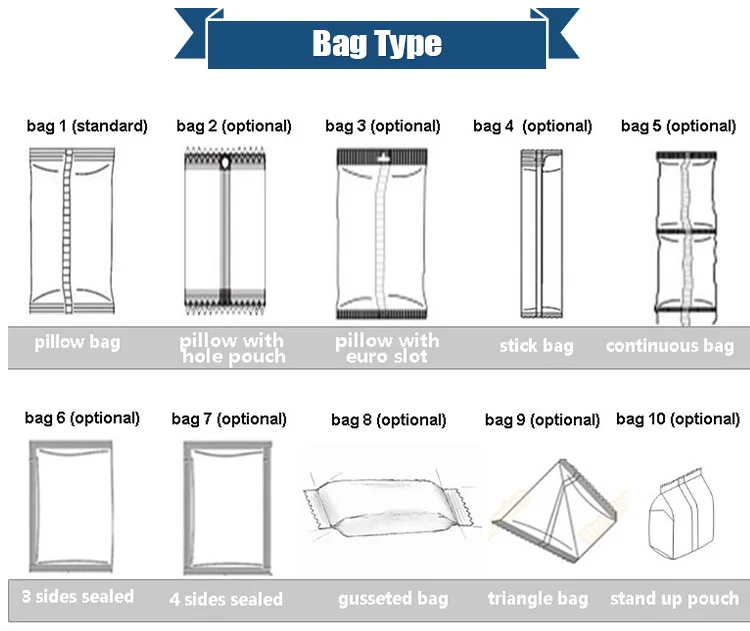

7.Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
8.Automatic correct funtion, save time, labor and film, the operation more intelligent.
9.Adopt external film feeding mechanism. Film setting be more easy and quick.
![]()
Application
Suitable for Liquid Honey, Oil, Water, Fruit Juice, Shampoo, Tomato Paste, Ketchup, Sauce, etc
![]()
![]()
Specification:
(We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.)
| Type |
ZV-320L |
ZV-380L |
ZV-420L |
ZV-520L |
| Film Width |
120-320MM |
180-380MM |
Max.420MM |
Max.520MM |
| Bag Length |
50-200MM |
60-280MM |
80-300MM |
80-350MM |
| Bag Width |
50-150MM |
60-180MM |
60-200MM |
100-250MM |
| Range of Measurement |
50-500ML |
50-750ML |
150-1500ML |
2000ML |
| Film Roll Diameter |
Max.300MM |
Max.320MM |
Max.320MM |
Max.320MM |
| Packaging Rate |
35-70Bag/Min |
35-70Bag/Min |
10-60Bag/min |
10-60Bag/min |
| Power |
220V 50/60HZ 2.2KW |
220V 50/60HZ
2.5KW
|
220V 50/60HZ
2KW
|
220V 50/60HZ
3KW
|
| Machine Size |
970*680*1950MM |
1100*800*2150MM |
1217*1015*1343MM |
1488*1080*1490MM |
| Machine Quality |
300KG |
450KG |
650KG |
680KG |
