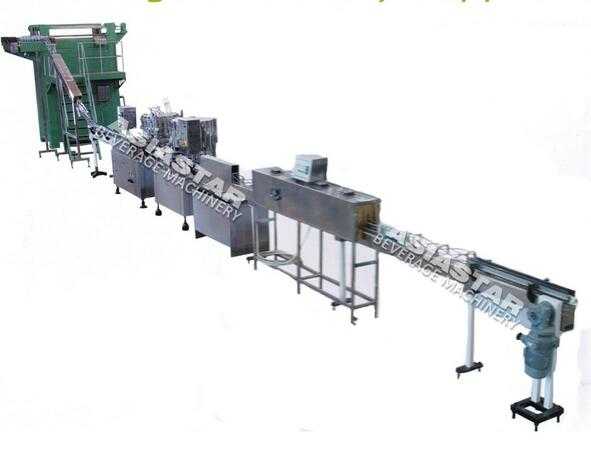

ASDW-473 Single-Room Feeding Rinsing Filling Capping Machine

1.This 3-in-1 soft drink filling machine combined with rinsing, filling and capping.

2.It is innovated and designed in the requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology from Germany.

3.With washing filling capping unit combined in one machine,easy operation by touch screen,fully-automatic running by PLC program.

Model

 RFCC16-12-6

 RFCC18-18-6

 RFCC24-24-8

Number of rinsing head

16

18

24

Number of filling head

12

18

24

Number of capping head

6

6

8

Rated production capacity

2000BPH

4000BPH

6000BPH

Installed capacity

3.5

4

4.8

Overall size

2200×1600×2300

2450×1900×2300

2750×2250×2300

Model

 RFCC32-32-10

 RFCC40-40-12

 RFCC50-50-15

Number of rinsing head

32

40

50

Number of filling head

32

40

50

Number of capping head

10

12

15

Rated production capacity

10000BPH

15000BPH

18000BPH

Installed capacity

7.6

8.3

9.6

Overall size

4000×2300×2300

4550×2650×2300

5450×3210×2300

Component :

Cylinder

AIRTAC ,TAIWAN

Photoelectrical Switch

AUTONICS ,SOUTH

Magnetic Valve

AIRTAC,TAIWAN

Pump

GRUNDFOS ,Denmark

Motor

ABB Brand , Germany

PLC

SIMENS,GERMANY

Transducer

SIMENS,GERMANY

Touch Screen

SIMENS,GERMANY

CONTACTOR

SCHNEIDER,GERMANY

Feature :

1.The series soft drink filling machine is used in production gas containing water of glass polyester bottle-packing carbonated beverage.

2.Adopting equal pressure filling principle and current spring valves in order to assure beverage quality.

3.It carries out washing bottle, filling and capping on one machine.

4.The magnetic torque is used for screw capping., in order to assure capping quality.

5.The main machine adopts advanced PLC control ,Touch screen and no-bottle, no-cap system.

6.It adopts bottle handing technology to make changing bottle more convenient, faster and easier.

7.The whole machine designing is reasonable, the appearance is beautiful and the maintenance is convenient.

Water treatment system Questions:

No.1  What about the backwash/cleaning system ?

In our machine we have the backwash system,with the valves in the filter to control the water flow direction , to finsh the filter or backwash process

No.2 Where is the pump ?

The raw water pump is with China Nanfang brand, with water flow capacity required ,normally with SUS304 material.If with special pump brand , pls let us know

No.3 What about blockage ?

Before the water into the tank , and before the water out of the tank , there is water distributor, which will stop the big particals.Avoid the situation of blockage.

No.4 What about the intermediate fitting & valves ?

The pipeline and valves are stainless steel material with SUS304

No.5 What about drain water fittings ?

For the quartz sand filter, active carbon filter, sodium filter, precise filterm , reverse osmosis device , each one with drain water pipeline

NO.6 RO device Membrane brand ?

Hydranautics

NO.7 How long to change RO membrane And precise filter membrane ?

Every 3-6 month change the precise filter membrane inside .

For RO membrane,It decided by Raw water analysis , such as if TDS is 0-300 , two year change one time . If TDS is more than 500, half an year change one time.

1. Dryer the bottle after bottle warmer with high pressure air, and prepare for the labeling.

2.The machine is a necessary part of the filling machinery. Its function is caused by high-speedwind.

3. The high-speed wind blows into air trunk and causes wind tunnel effect. enhance and maintain a high wind speed, air ducts can easily adjust devices according to bottle / tank diameter and height so that it is more efficient and can adjust more easily.

4.Air ducts are made of (in accordance with food hygiene requirements on material) 304 stainless steel.

5.It is widely used in the bottle water/drinks production plant, when finished filling, before going to the shrink labeling machine, there may some water on the bottles, so it need the bottle dryer to make the bottle dry, then it can be going to the shrink labeling machine.

1.Printing producing date, expiry date , company logo, etc. on the bottles as required.

2.Lines of printing: Up to 3 (7x5, 7x7)

3.Variable characters/languages/logos/fonts printing

4.Timing and counting printing

5.Reversal and inverse etc, four directional inkjet printing

6.Automatic show of products counting, batch numbers, shift numbers

Adhesive label machine feature

1. PLC control, fully automatic working .

2. Touch-screen control panel, easy operation.

3. Singel positional adjustable central transmission post, more stable lable transmission

Heat shrink film Feature:

1) PLC programmable procedure control system, with colorful touch-screen control panel

2)Bottle entering, Auto unscrambling bottle, Pushing bottle, Heat sealing-Saw cutting, Pressing PE, Shrink, Cooling automatically

3)Capacity is adjustable through adjust the convey speed

4)The height of the conveyer shall be made towards client's demand, can handle 6, 9,12,15, 18, 20, 24 bottle per package

5)Double air blowers, guarantees the temperature balance in the shrink stove with PAD temperature controller that apparently saves energy.
