• ASA-446 Automatic 5 Gallon Mineral Water Filling Machinery

ASA-446 Automatic 5 Gallon Mineral Water Filling Machinery

1. Porducing capacity: 100-2000BPH; 2. PLC controlled+ English MMI; 3. Bottle volume:3 gallon- 5 gallon; 4. Certification: CE, ISO;

Product Details

Quick Details

Description

  • Model NO.: ASA-446
  • Automatic Grade: Automatic
  • Filling Valve Head: Multi-Head
  • Dosing Device: Capacity Cup
  • Packaging Container Lifting Structure: Chute Lifting
  • Packaging: Barrel
  • Application: Beverage,Mineral/Pure/Spring/Drinking Water
  • Certification: BV, UL, Ce, ISO9001
  • Barrel, Bottles, Bucket Shape: Round/Square/Customized Shape
  • Customized: Customized Acceptable
  • Condition: New
  • Trademark: ASIASTAR
  • Specification: customized
  • HS Code: 8422301090
  • Type: Volumetric Filling Machine
  • Material Type: Liquid
  • Feed Cylinder Structure: Single-Room Feeding
  • Filling Principle: Pressure
  • Structure: Rotary
  • Packaging Material: Plastic
  • Voltage: 110V/220V/380V/440V Customization
  • Sealing Way: Gland Type
  • Barrel, Bottles, Bucket Material: PP/Pet
  • Ingredient: Filling Machine
  • Driven Type: Electric
  • Transport Package: Plywood Box
  • Origin: China (Mainland) Jiangsu Province

Specifications:
1. Porducing capacity: 100-2000BPH
2. PLC controlled+ English MMI;
3. Bottle volume:3 gallon- 5 gallon;
4. Certification: CE, ISO

Features:

1) Our barreled water producing line is specially designed for 3-5 gallon drinking water;

2)The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;

3) Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically

4) In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;

5)  Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging.



Technical parameters:

Model

QGF-100

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Filling head

1

2

3

4

6

6

Barrel size(mm)

Φ 270*490

Φ 270*490

Φ 270*490

Φ 270*490

Φ 270*490

Φ 270*490

Capacity(b/h)

60-120

250-300

400-500

600-800

800-900

1200

Gas pressure(mpa)

0.4-0.6

0.4-0.6

0.4-0.6

0.6

0.6

0.6

Gas consumption(m3/min)

0.37

0.6

0.8

1

1.5

1.8

Moto power(kw)

1.38

3.8

3.8

7.5

9.75

13.5

Weight(kg)

680

1500

2100

3000

3500

4500

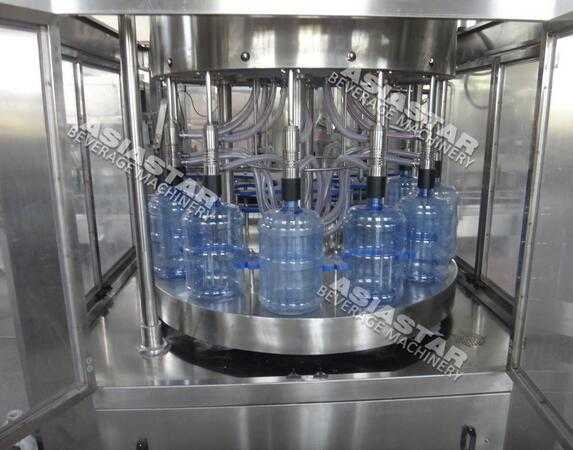

ASA-446 Automatic 5 Gallon Mineral Water Filling Machinery

Company Profile

Asiastar beverage machinery Co., Ltd. As one professional beverage machine manufacturer in China, was established in 2006. With 10 years running experience, we can offer complete solution to design, manufacture, pack, transport, install, maintain the beverage packing machines according to our customer's requirement.

Our company's main products are as follow:

1) Water Treatment System (1MT/H-100MT/H);

2) Mineral/Pure water filling line ( with capacity 2000BPH-24000BPH );

3) Carbonated drinking filling line ( with capacity 2000BPH-20000BPH );

4) Juice filling line ( with capacity 2000BPH-20000BPH );

5) Alcohol drink filling line ( with capacity 2000BPH-18000BPH;

6) 3&5 gallon water filling line ( with capacity 100BPH-2000BPH );

7) Labeling&Packaging equipment;

Asiastar Beverage Machinery Company has exported to America, Japan, Thailand, Uzbekistan, Russia, Cambodia, Indonesia, etc...We do believe that our company can help you and serve you well.

"Treat customers sincerely, consider company reputation fastidiously and depend on high quality to win the success" is the management idea of our company. Asiastar is looking forward to getting the long term cooperation during the business.
