Quick Details
Description
- Condition: New
- Application: Profile
- Plastic Processed: PVC
- Screw Design: Double-screw
- Automatic Grade: Fully Automatic
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: HAIBIN
- Model Number: SJSZ
- Voltage: 380V 50HZ
- Power(W): 37kw
- Dimension(L*W*H): 20mx2.5mx2.2m
- Weight: 4000kg
- Certification: CE ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: Twin Screw Extruder
- Processing Type: Extruding Equipment
- Product Type: PVC Sheet
- Color: Blue
- Warranty: 1 Year
- Product: Sheet Production
- Inverter: ABB
- Contactor: Siemens Contactor
- Output: 60- 1200kg/h
- Temperature control: Japan Omron
The edgeband in the form of roll has its thickness of 0.5-4mm,and width 2-300mm depending on the requirements.Its length is not limited.
This product is featured by its good banding effect,easy operation and high etilization rate,therefore it is applicable to mechanical banding of solid furniture,composite doors and WPC doors.

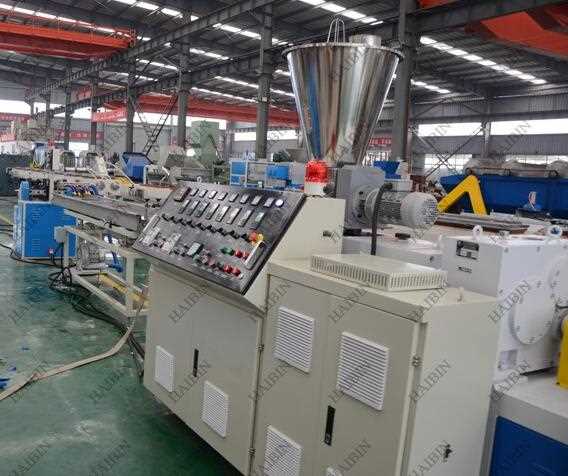

PVC edge band production line features:
1. material: ABS or PVC
2. width: 9mm to 180mm, your special requirement is also welcomed
3. thickness: 0.4mm to 3mm, welcome your specific requirement
4. special size could be designed
5. color: solid color or wood grain, color could be design according to customer
color sample
Equipment using environment for pvc edge banding tape production line
|
Suitable resin
|
PVC
|
|
Line speed
|
2-10 m/min
|
|
Max output
|
50-80 kg/h
|
|
Air consumption
|
0.6m3/min, pressure :0.2-0.7 MPa
|
|
Water cycle
|
0.8m3/min
|
|
Power supply
|
380V±10%,50Hz; control :220V±10%
|
|
Water source
|
Industrial-use water,no impurities ,filteration treatment ,inlet temperature:12-15°C, water pressure:6 Bar
|
|
Working environment temperature
|
20±5°C
|
Zhangjiagang Haibin Machinery Co., Ltd. (Haibin) has specialized in manufacturing plastic machinery and equipment for many years. Located in the scenic and national sanitation city of Zhangjiagang, which is adjacent to Shanghai to the east and Nanjing to the west, our company enjoys very convenient communication.
With skilled technical staff, Haibin can meet all customers' support service requirement. By listening to our customers and understanding their needs and requirements, HAIBIN consistently provides customers with high quality machinery.
Our company has developed various plastic machines, mainly including big-mouth PVC water & waste excluding production lines, plastic recycling production lines, PE big-mouth gas and water supply/drain pipe production lines, sheet production lines, granule production lines, PP-R pipe production lines, plastic extruders, high speed mixers, mixer units and various plastic auxiliary machines.
Our machines have been exported to many counties and regions, such as America, Africa and the Middle East.
Hainbin machinery has been certificated by ISO9001-2000 and CE certificates. We always believe that quality and service are the most important to Haibin and customers.
Our customer protection plan is included with every HAIBIN machine
1, Haibin's exclusive NO risk guarantee gives you peace of mind knowing that we will fulfill our promise or you may return the machine for a 100% refund.
2, One-year free-warranty on all mechanical and electrical components insures lower operating costs.
3, The lowest spare part pricing in the industry provides the highest overall value and the lowest cost.
