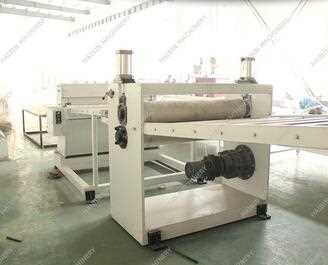

plastic pvc board extruder machine for sale

• Condition: New
• Application: Sheet
• Plastic Processed: PVC
• Screw Design: Double-screw
• Automatic Grade: Automatic
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: HAIBIN
• Model Number: SJSZ
• Voltage: Customized
• Power(W): 15-300kw
• Dimension(L*W*H): Machine Model
• Weight: 5-20T
• Certification: CE ISO
• After-sales Service Provided: Engineers available to service machinery overseas
• Main motor: SIEMENS
• Feeding screw: double screw
• Gear box: Duoling (BEST BRAND IN CHINA )
• heater: cast aluminium
• cooling way: water recycling and fan
• converter: ABB
• contactor: schneider
• screw material: 30CrMoAlA
• Temperature control: OMRON
• Color: Customizable according to requirement of customer

 General description :
Plastic Processed: PVC and WPC
Screw Design: Conical double screw
Model Number: SJSZ80/156   SJSZ92/188
Voltage: 380-440V
Main Motor Power: 75kw   110KW
Dimension (L*W*H): 25m*3m*3m
Weight: 28t
Output of plastic plate: 400kg/h,600kg/h,800kg/h
Finished Product: PVC/WPC foam board
Specification of finished board: 1220*2440*(3-30) mm or 915*1830*(3-30)mm
Density of finished board: 0.37-0.85 adjustable
Application of Foam Board: Furniture board, concrete formwork, decoration board, advertisement board, wall panels, floor, roof, car and boat board etc.
After-sales Service Provided: Engineers available to serve overseas
Packing Details: Wood package and PE film covered 2 -3 containers.
Delivery Details: 60 working days

For sheet

for board

This production line is capable of continuously producing single-layer or multi-layer foam board and sheet with the width less than 3000mm and thickness of 2-30mm.

Characteristics of the Seperate Equipment:

Extruder: Appropriate Single-Screw Extruder (exhaust or not) or Conical Double Screw Extruder should be chosen on the basis of different materials. Specially designed screw and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.
Screen changer and mould:The quick screen changer of hydraulic system ensures the short course of screen changing without material-leakage. Reasonable structure of mould should be chosen in terms of material, whereas moulds of clothes-rack mode are widely accept

ed to regulate flow-distribution and guarantee even thickness of plates (sheets).
Vacuum sizing platform : It is consists of four groups(eight sets) calibrating bench,let the material become the foam board that want to get,through chaning it,we can change the thickness of the board.
Cooling bracket: Equipped with corresponding guide roller, the cooling effect is better. In addition, the edge-shearing device equipped can guarantee fixed width of plates (sheets) and quality of edge.
Hauling machine
Cutting machine: It is of length-fixed cutting with cutting precision less than 2mm and adopts alloy blade or rigid alloy saw bit to ensure the good cutting effect and constantly stable performance.

Zhangjiagang Haibin Machinery Co., Ltd. (Haibin) has specialized in manufacturing plastic machinery and equipment for many years. Located in the scenic and national sanitation city of Zhangjiagang, which is adjacent to Shanghai to the east and Nanjing to the west, our company enjoys very convenient communication.

With skilled technical staff, Haibin can meet all customers' support service requirement. By listening to our customers and understanding their needs and requirements, HAIBIN consistently provides customers with high quality machinery.

Our company has developed various plastic machines, mainly including big-mouth PVC water & waste excluding production lines, plastic recycling production lines, PE big-mouth gas and water supply/drain pipe production lines, sheet production lines, granule production lines, PP-R pipe production lines, plastic extruders, high speed mixers, mixer units and various plastic auxiliary machines.

Our machines have been exported to many counties and regions, such as America, Africa and the Middle East.

Hainbin machinery has been certificated by ISO9001-2000 and CE certificates. We always believe that quality and service are the most important to Haibin and customers.

Our customer protection plan is included with every HAIBIN machine
1, Haibin's exclusive NO risk guarantee gives you peace of mind knowing that we will fulfill our promise or you may return the machine for a 100% refund.
2, One-year free-warranty on all mechanical and electrical components insures lower operating costs.
3, The lowest spare part pricing in the industry provides the highest overall value and the lowest cost.
