Description

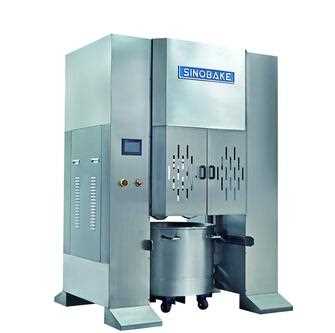

HML100 Vertical Mixer is mainly for mixing cookies dough. It adopts the helical gear reducer, to keep the mixing speed stable. The Main motor is controlled by frequency converter. When the mixer switched on , the perfectly-designed Planet Carrier rotates when there are 2 Rotary Blades getting on autorotation by themselves , while another Stationary Blade rotates with the Planet-Carrier-Wise.
The bucket can be moved with the industrial wheels in its bottom. When raising the bucket, the speed motor drives the pulley, which would drive the two sync-pulleys, so that both side of the bucket are in the same raising speed.
>> Cover is made of Q235 Carbon steel and painted - finishing.
>> Mixer shafts, blades and the buckets are all made by stainless steel , which is guaranteed to meet
the International Food Hygienic Standard.
>> Pulley is made of HT200 cast iron in gray
>> Gear and bearing block are made of 45# steel with black powder-coated treatment
>> Other spare parts are made of Q235 steel and chromed
>> SEW motor, Siemens electronic component, NSK bearing and FESTO cylinder.
>> Power of 7KW (5.5KW for mixing, 1.5KW for raising), mixing volume of 300 liter.
>> Revolution Speed : 41r/min,
Autorotation Speed : 145r/min
>> Dimension (mm): 1300*1000*2050, weight (kg) : 4500
HUAJI INDUSTRIAL CO.,LTD, (SINOBAKE) has been supplying equipment and process technology to biscuit industry since 1994. And we have been exporting our machineries around the world to more than 100 countries. Thanks for the well professional staff, with their experience and know-how, we can meet your requirement when supplying either single machines or complete production lines. Our company operates the production in strict compliance with ISO 9001 and CE standards to provide reliable and safety products for customers all around the world.
