Quick Details
Parameter
Name : pressure testing hand pump
Description
Description pressure testing hand pump

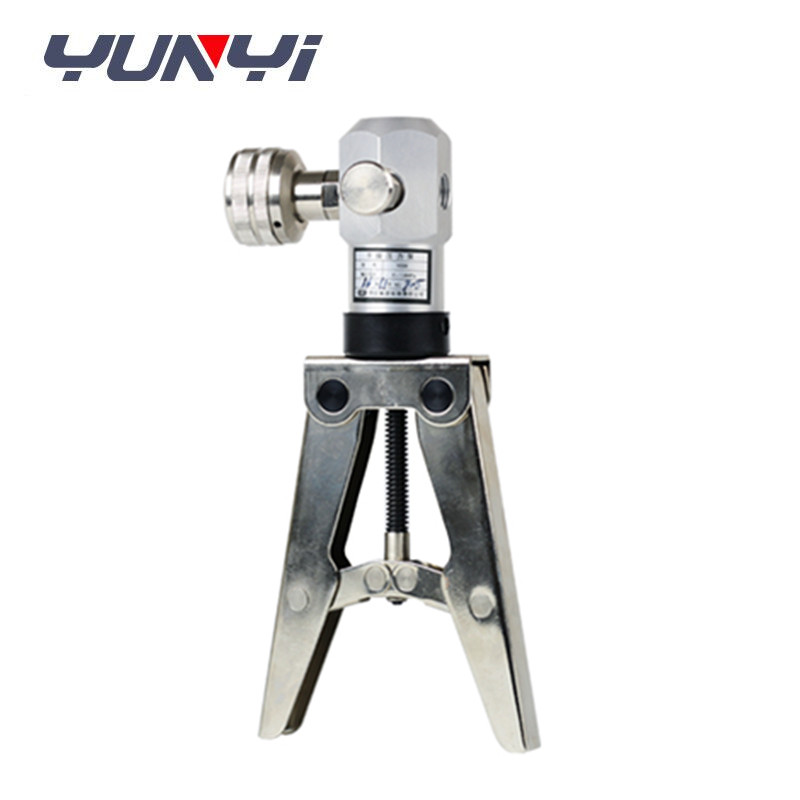

Hand pressure calibrator pump is a quick hand pressure source, can easily realize vacuum and add positive pressure through adjust pressure vacuum valve, suitable to calibrate kinds of differential pressure, vacuum, vacuum pressure and pressure instrument, also can be used to be a pressure vacuum source of the above pressure instrument. Characteristic of compact size, light weight, easy to operate and convenient to carry
Detailed Images pressure testing hand pump
![Low price hand pressure calibrator pump]()
![Low price hand pressure calibrator pump]()
Specification pressure testing hand pump
| output pressure range |
Y039:0-1.6MPa |
| Y061: -0.1-0MPa |
| Y060: -25MPa |
| YFP-16: -0.088~1.6MPa(-0.88~16bar) |
| YFP-20: -0.088~2.0MPa(-0.88~20bar) |
| YFP-25: -0.088~2.5MPa(-0.88~25bar) |
| operating temperature |
-20~50C |
| operating relative humidity |
~100% |
| flexible hose connector |
M20*1.5 female |
| master gage connector |
1/4NPT male |
| dimensions |
235*120*65 / 230 * 110 * 60 |
| weight |
0.6kg ,0.5kg |
| Accessories |
500 mm long plastic hose and a leatherette carrying bag |
| Outlet threads |
1/4 NPT, or to custom request |
| Vernier-adjuster |
micro-adjustable, volume control |
Features pressure testing hand pump
1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument.
We specializing in developing high precision pressure transmitter,pressure gauges,pressure calibrator , deadweight tester and level measurent..
And we also develop valves,flow meter,temperature transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
