Quick Details
Parameter
Name: : water pressure sensor
Output: : 4-20mA,0.5-4.5V,0-5V.0-10v
Power: : 5VDC,10-36VDC
Thread: : G1/4 or others
Description
![pressure indicator measurement water air pressure sensor]()

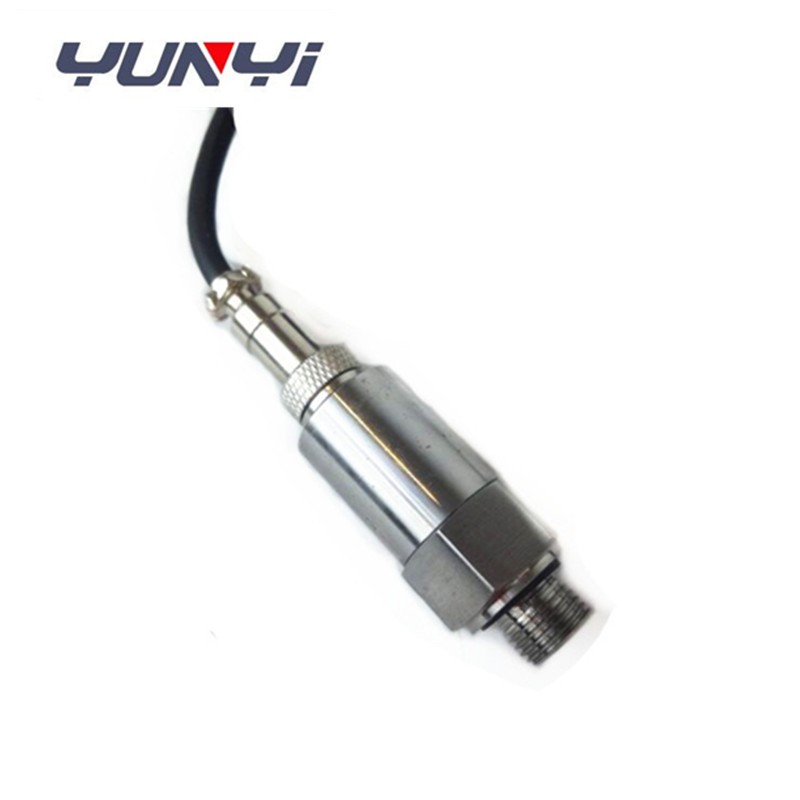

Description water pressure sensor
Yunyi YD35 Pressure transmitters are precision engineered to fit most industrial pressure measurement applications. The compact, rugged design makes these instruments suitable for applications including hydraulics and pneumatics,vacuum, test equipment, liquid level measurement, press control, compressor control, pump protection and numerous other processing and control operations. A wide range of electrical connection and process connection options are avail-able to meet almost any requirement.

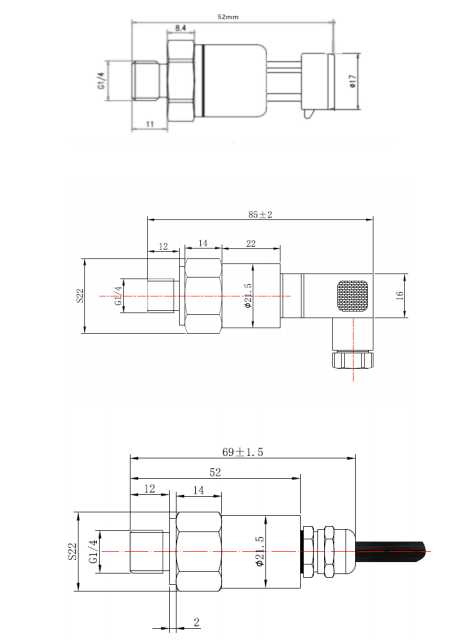

Detailed Images water pressure sensor
Specification water pressure sensor
Output signal:4-20mA, 0-20mA, 0-5V,0-10V and others
Pressure Range: 0-0.1bar to 0-1000bar
Pressure Interface: G1/4, G1/2 1/4NPT, 1/2NPT and others
Electric Interface,L plug interface, Circular plug interface, Wire output, With cable
Contact member: stainless steel
Case: stainless steel
Internal transfer liquid(Not suitable for measuring range)>25bar
Synthetic oil{Halocarbon oil counter to Manufacturing structure with oxygen}{FDA counter to food industry}
Allowable temperature
Measure Medium: -30-100°C
Environmental temperature: -20-80°C
Storage temperature: -40-100°C
Features water pressure sensor
Small size easy installation
Stainless steel case sturdy and durable
Wide temperature range:-40~125℃
Durable thin film sensor technology
Pressure ranges from -1 bar to 60bar
0.5-4.5V ,1-5V ,0-5V ratiometric outputs
0-10V, 4-20 mA , others available
Highly resistant to pressure spikes and vibration
Applications water pressure sensor
Automobile, compressor and refrigeration Industry
Engineering machinery
pressure control and monitor
Energy and water treatment system
Armarium, agricultural machinery
Hydraulic and pneumatic control system
Iron and steel industry, light industry
Pump, fitness equipment, household appliances
Hydraulics and pneumatics
Liquid level measurement
Test equipment
Selection Guide water pressure sensor
![]()
-------------
