fork density meter

Description fork density meter

Tuning fork density meter is the introduction of foreign advanced frequency tracking technology and the production of high-precision, high applicability vibration principle density meter, product design using plug-in installation, widely used in pipelines, open tank containers and closed tank containers In the medium density testing.
Tuning fork density meter sensor is composed of two piezoelectric crystals, one piezoelectric vibration, the other piezoelectric crystal vibration detection, tuning fork sensor built-in temperature sensor, the piezoelectric crystal vibration temperature compensation.

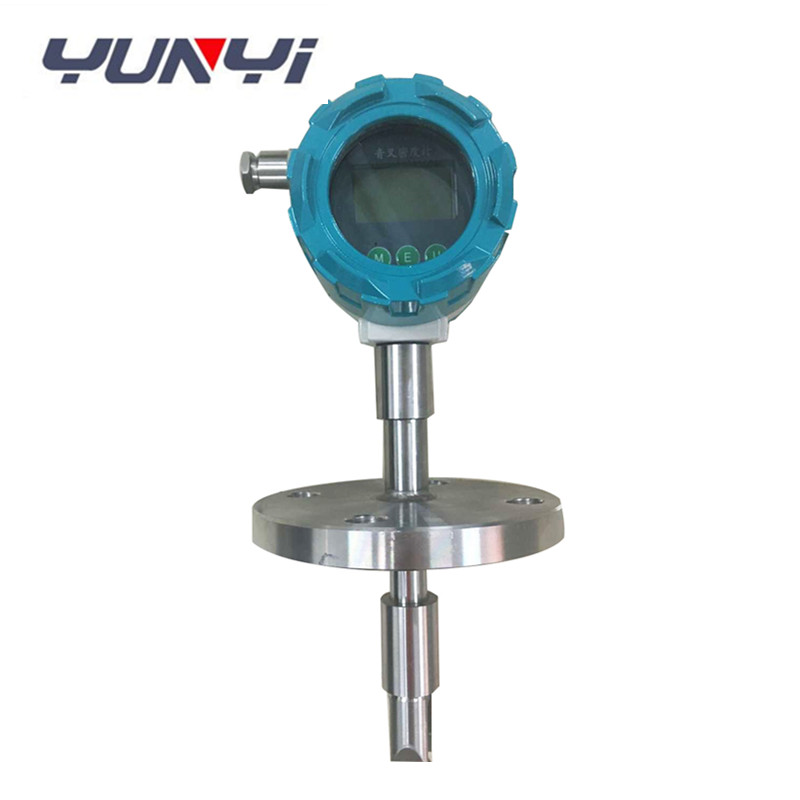

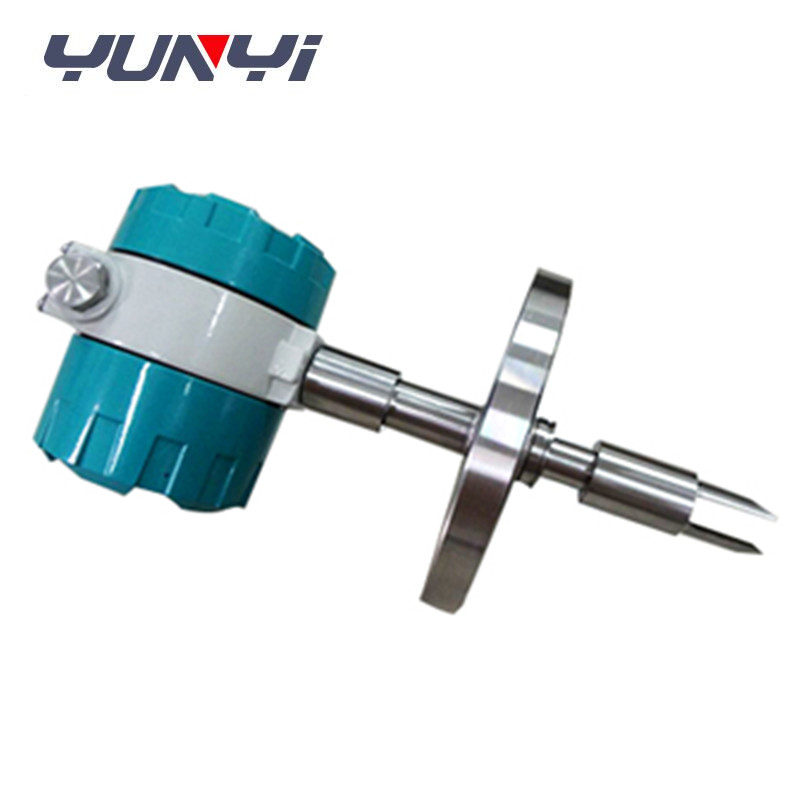

Detailed Images fork density meter

Specificationsplit fork density meter

1 Density range :0-3 g / CM3 (3 /2.5/ 2 /1.5/ 1)
2 Output:4-20 mA  4-wire ( 2-wire system can not be used)

3 Accuracy:0.001 g / cc, with a resolution of 0.0001 g / cc
4 Insertion depth :(flange distance to the end of the fork, minimum 125 mm, up to 2 meters)

5 Wetted material: stainless steel, Hastelloy C22, 400 manganese alloys, titanium, etc.
6 Fork Coating: standard, PTFE or electrolytic polishing
7 Power supply: 20 - 28 VDC, 35 - 45 mA

8 Operating temperature range: -50 ℃ ~ + 200 ℃
9 Maximum working pressure: 20Mpa
10 Fluid viscosity range: 0 - 20000 cP
11Temperature coefficient: 0.1 kg / m3 / ℃ (corrected)

12 Process connection: 1.5 "NPT threaded connection; DIN 50 PN40 and PN100 flange connection;
13 Protection: IP65
14  Display: Up density value, the density value can be switched to kg / cubic meter or g / cc by unit keys. Down display a temperature value (measured medium temperature ) temperature is original PT1000
15 Accessory:   temperature of 4-20 mA output signal
16 The internal circuit board with automatic filtering function, other vibrations like pipe vibrations can eliminate away from the side of circuit and software,whichensure accuracy.

Features fork density meter

1. Adopting Germany piezoelectric ceramic piece, crossing gold process for ceramic piece to increase the inoxidizability of ceramic piece, thus increasing the service life of densitometer.
2. Fork vibration original piece adopts Japan's high performance original piece, in which installed 24 AD converter, and the accurate recognition for frequency is 0.01HZ, to ensure the  sensitivity and accuracy of density.
3.Fork density calibration adopts national density standard solution, to ensure the source and accurate of density.
4.The current circuit is independent of fork vibration circuit, there is isolating anti-interference inner, reducing the influence to instrument from disturb.
5. There is set density three point quick calibration, range adjust, current calibration etc function, to meet on-site working demands.

6.Using high precision measuring density, is mainly used in power plant.
7.Can not be affected by temperature, pressure and flow rate , the factor affecting measuring error Is less.

Principle fork density meter

Fork sensors ---------- one pair  fork ceramic sheets
A piezoelectric ceramic is responsible for generating vibrations
A piezoelectric ceramic is responsible for collecting vibration
The fork is always vibrate in the resonant frequency of vibration
Fork in different densities ,the resonance frequencies was different,.according to the relationship between the different vibration and density to calculate the density
The resonance frequency of the tuning fork is between 1600-2400
The higher the frequency the smaller density.

Dimension fork density meter

Application fork density meter

Measurement of the density (concentration) of ore pulp in the process of ore dressing density (concentration) during coal feeding process;
Measurement of syrup density (concentration)
Measurement of starch emulsion density (concentration) (dry matter mass)
Desulfurization project lime slurry density (concentration) measurement, alarm
Denitration project ammonia density (concentration) measurement
Pharmaceutical industry concentrated solution density (concentration) measurement
Alcohol and water surface density (concentration) measurement
Various types of pipeline or tank density (concentration) measurement
