Quick Details
Description

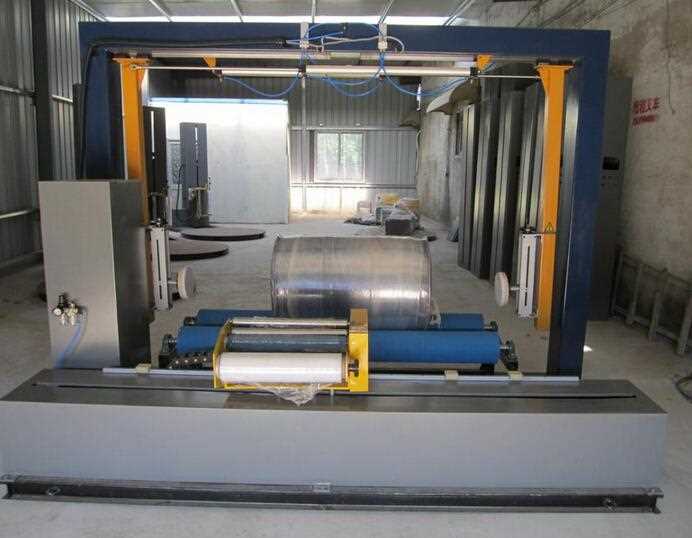

- Type: Wrapping Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Textiles, paper coil, roller
- Packaging Type: Roll, Paper Roll
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V
- Power: 1.5KW
- Place of Origin: Shandong, China (Mainland)
- Brand Name: NATHAN
- Model Number: W1600F
- Dimension(L*W*H): Customized
- Weight: 680kg
- Certification: CE Certificate
- After-sales Service Provided: Engineers available to service machinery overseas
- Package Speed: 20-60pcs/hour
- Turntable Speed: 0-12 rpm/min
- Wrapping Diameter: 400-1200mm
- Wrapping Length: Length 500-1500mm
1.Turntable: Turntable adopts multi-directional design, so that it looks beautiful and generous when stop working.
2.Side pressure cylinder: Side pressure cylinder is designed under the roller, which makes structure compact and saves space.
3.Film system: Special pre-stretch output system, stretch ratio of 1: 2.5 (adjustable).
4.Driving motor: Adopts hard tooth gear motor which has reliable action, long service life, low failure rate and compact structure.
5.Film height adjustment: Screw regulation, stable and reliable, coupled with hand wheel, easy adjustment.
6.Turn table adopts frequency control and chain drive.
7.Variable frequency control of roller makes packaging effect control easy and makes counting more accurate.
8.Film feeding: pre-stretch;
9.Easy film output. When there is film shortage, film feeding stops automatically. Turntable automatically resets.
Technology Parameter
|
Packing Specification
|
Diameter 400-1200mm
|
|
Length 500-1500mm
|
|
Packing Efficiency
|
20-60pcs/hour
|
|
Roller Loading
|
1000kg
|
|
Roller Spacing
|
320mm
|
|
Totally Weight
|
680kg
|
|
Power/Voltage
|
1.5KW/AC380V
|
|
Gas Comsumption
|
1000ML/min, Automatic Ejection
|
|
Packing Materials
|
LLDPE stretch film
|
|
Thickness 17-25um
|
|
Width 500mm
|
|
Paper Core76.2mm
|
