Quick Details
Description

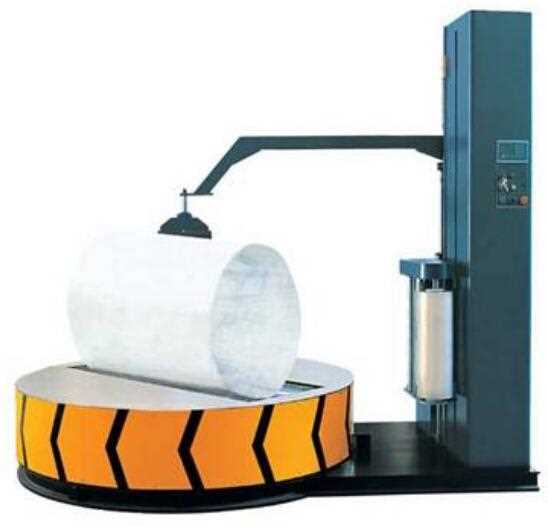

- Type: Wrapping Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Textiles, paper coil
- Packaging Type: Bags, Cartons, Film, coil
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V
- Power: 2.5KW
- Place of Origin: Shandong, China (Mainland)
- Brand Name: NATHAN
- Model Number: T2000F
- Dimension(L*W*H): 1200*1650*2000mm
- Weight: 500kg
- Certification: CE Certificate
- After-sales Service Provided: Engineers available to service machinery overseas
- Package Speed: 2 minutes / pcs
- Turntable Speed: 0-12 rpm/min
- Turntable Load: 2500kg
- Wrapping Size: 500-1660mm
1.Turntable: Turntable adopts multi-directional design, so that it looks beautiful and generous when stop working.
2.Side pressure cylinder: Side pressure cylinder is designed under the roller, which makes structure compact and saves space.
3.Film system: Special pre-stretch output system, stretch ratio of 1: 2.5 (adjustable).
4.Driving motor: Adopts hard tooth gear motor which has reliable action, long service life, low failure rate and compact structure.
5.Film height adjustment: Screw regulation, stable and reliable, coupled with hand wheel, easy adjustment.
6.Turn table adopts frequency control and chain drive.
7.Variable frequency control of roller makes packaging effect control easy and makes counting more accurate.
8.Film feeding: pre-stretch;
9.Easy film output. When there is film shortage, film feeding stops automatically. Turntable automatically resets.
Technology Parameter
|
Packaging speed
|
1.8 minutes / pcs. (depending on the specific goods)
|
|
Turntable load
|
150kg (max)
|
|
Turntable speed
|
0-12 rpm/min
|
|
Maximum length of turntable
|
1200mm
|
|
Turntable height
|
630 mm
|
|
Roller spacing
|
320 mm
|
|
Power / voltage
|
0.6 kw/220v
|
|
Machine weight
|
500 kg
|
