Quick Details
Description
Place of Origin: Hubei, China (Mainland) Brand Name: Zhongke Model Number: HSPA20 Screen size: 8.4 inch Screen resolution: 1024*768 Extended Interface: USB2.0*4,10M/100M LAN*1,VGA*1 Power supply: 24V AC adapter, 14.8V lithium battery, with 2 adapters and 2 batteries Working time: 4 hours (one battery-powered) Weight: 4.8Kg Dimensions: 295 * 215 * 120 (mm) Encoder interface: +5 V TTL level Image scanning: A / C / D / S / L scan Full Name: Zhongke HSPA20 Portable Phased Array Ultrasonic Flaw Detector
Packaging & Delivery
Packaging Details: Military industrial plastic box
Zhongke HSPA20 Portable Phased Array Ultrasonic Flaw Detector
Delivery Detail: 2-4 weeks
Product Description

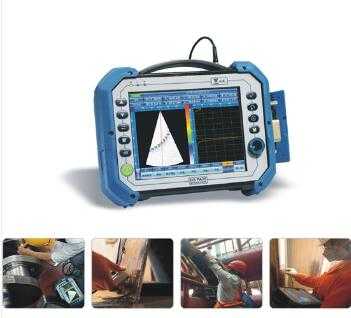

Zhongke HSPA20 Portable Phased Array Ultrasonic Flaw Detector
Our company's 1st Phased Array flaw detector was designed and manufactured in 2010, after years user feedback and technology improvement, the HS PA20 Phased Array flaw detector has became the high performance and easy operate model. it's TFT screen with high image resolution (1024*768 pixel, image can be shown more dedicate, flaw size and location can be shown with higher accuracy), the display refresh rate is 60Hz, ensures the image reflects the scanning position; HS PA20 Phased Array flaw detector with 32 elements transmit and receive signal synchronously, it can real time display A-scan, C-scan, D-scan, S-scan and L-scan image, and it has max.300V transmit voltage (the emission power higher than domestic and foreign products).
Features:
● With high image resolution (1024*768 pixel, image can be shown more dedicate, flaw size and location can be shown with higher accuracy)
● With 60Hz display refresh rate, ensures the image reflects the scanning position
● With 32 elements transmit and receive signal synchronously, real time display A-scan, C-scan, D-scan, S-scan and L-scan image.
● With whole point DAC curve function, make DAC curve with unlimited point and compensation
● Optimal time-delay accuracy up to 1ns, make better focusing performance and better imaging, with dynamic Focusing function
● With max.300V transmit voltage (the emission power higher than domestic and foreign products)
●With high gain adjustment range (digital gain:30dB; analog gain:80 dB)
● With a high degree gate and sound path gate, automatic alarm when the defect is detected
● Support module extension, it can be extended with 4 pairs of TOFD channel and PE multi-channel.
● With simulation of various work-piece inspection (suitable for Plate weld, “T” type weld, corner weld, Pipe weld, forge piece and plates inspection)
● Support full record of encoder scanning
● With light-weight and easy carry.
Application:
-Weld inspection
-Aerospace industry
-Nuclear Industry
-Shipbuilding industry
-Arsenal
-Electric Power Industry
-Petroleum Industry
-Chemical industry
Zhongke Innovation Technology Co., Ltd., abbreviated as "Zhongke Innovation", is a scientific and technological enterprise held by Chinese Academy of Sciences, and a nondestructive testing equipment manufacturer with independent intellectual property rights. Zhongke Innovation has been committed to providing the market users with various kinds of all-round, efficient, steady, reliable, safe and environment-friendly nondestructive testing solutions and products, and providing special market users with customized personalized services to help the industries such as petroleum, chemical industry, metallurgy, electric power, aviation, aerospace, railway, military industry, ship, automobile and new materials to continuously improve technology process, enhance product quality and continue to increase enterprise benefits.
In 1988, Zhongke Innovation adhered to the business concept of "Leading Technology, Integrity-based, High Quality and Efficiency, Progressive Innovation" to take the lead in independently researching, developing and manufacturing China's first digital ultrasonic testing equipment. After about 30 years of continuous innovation and market application, the company now has been developed into the benchmarking enterprise with the most excellent technological innovation capacity, the most powerful enterprise comprehensive strength, the most complete product variety system and the largest application customer group in China's ultrasonic nondestructive testing industry. Moreover, the company has several core product systems which leads the development direction of China's ultrasonic nondestructive testing technology including conventional testing equipment, high-end imaging testing equipment and all kinds of automatic detection equipment to form the whole industry chain layout from portable manual testing product to full automatic detection system and from design, research, development, manufacturing to field installation, debugging and training. The performance indicators of all core testing products have reached international advanced level, and completely conform to the certification standards of EU testing institution.
Zhongke Innovation continues to move towards the ideal. The new Ultrasonic Detection Technology Industrial Park which is invested in and built by the company has been officially put into use. The Park establishes modernized research & development bases and test equipment such as acoustical experiment center, electronic technology experiment center, mechanical design center, detecting instrument research & development center, mechanical processing center, assembly debugging center and quality detection center, etc. The use of Ultrasonic Detection Technology Industrial Park will certainly lay a solid foundation for Zhongke Innovation to improve technical innovation capacity, optimize product quality and continue to lead the technology of Chinese ultrasonic nondestructive testing technology.
