Quick Details
Description
Place of Origin: Hubei, China (Mainland) Brand Name: Zhongke Model Number: HS900L Bandwidth Range: 10KHz-150KHz Vertical Linear Error: <3% Horizontal Linear Error: <1% Dynamic Range: ≥30dB Detection Range: Maximum 300 m Excitation Mode: Permanent magnet he Report Form: Word document Certificate: ISO CE Dimensions Of Display Screen: 8.4inch 24-digit true color display Full name: HS900L Electromagnetic Guide Wave Long Range Ultrasonic Flaw Detector
Packaging & Delivery
Packaging Details: Military industrial plastic box
Zhongke HS900L Portable Electromagnetic Low Frequency Guide Wave Long Range Ultrasonic Flaw Detector
Delivery Detail: 2-4 weeks
Product Description

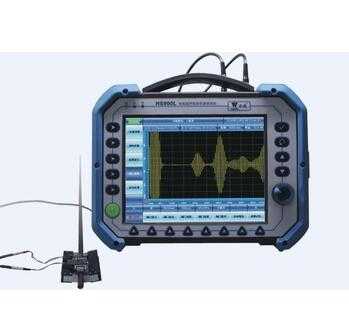

Zhongke HS900L Portable Electromagnetic Low Frequency Guide Wave Long Range Ultrasonic Flaw Detector
Zhongke Innovation Technology Co., Ltd. is a professional manufacturer of NDT equipments with independent intellectual property rights. Zhongke has been working on R&D of Ultrasonic technology for over 30 years. Now Zhoneke has different series of NDT products, such as Phased Array Detector, TOFD Detector, Conventional Ultrasonic Flaw Detector, EMAT Detector and Online Automatic Inspection Systems for Pipe, Tube, Plate, Bars, Vessel, Automobile Parts and etc. Zhongke also has committed to provide the customers with various kinds of all-round, efficient, steady, reliable ultrasonic solutions!
Electromagnetic guided wave, no need Polishing and coupling
Far transmission distance, up to 300 meters, high efficiency of detection
HS 900L Performance Features
-*-Apply to specific wire rope , rebar , screw thread steel for long distance corrosion detection;
-*-Integrated design, light weight, small size, easy to carry, nice appearance, combining display data and acquisition;
-*-Small attenuation, transmitting distance up to 300 m;
-*-One-way detection distance up to 50~150, high efficiency of detection, Directional emission (positive and reverse, two-way),no need coupling agent;
-*-Single receiving channel with functions of direction control using 2 way emission to control the direction of electromagnetic ultrasonic testing;
-*-The functions of directional transmission (positive and reverse, two-way)
-*-Image intuitive and easy to learn and use;
-*-The function of dispersion curve of ultrasonic guided wave mode selection.
-*-The functions of 64 order for echo signal digital filter and wavelet denoising, digital average and the denoising process does not affect the wave height and accuracy;
-*-The function of an automatic calibration guided wave velocity .
-*-The functions of storing all data records and data analysis on instrument or on computer;
-*-The connecting cable between instrument and probe adopts double shield structure, which makes stronger anti-interference ability;
-*-Modular battery, double batteries and double charger.
HS900L Technical Parameters
Instrument Parameters
-*-Dimensions Of Display Screen:8.4inch 24-digit true color display
-*-Data Storage: Internal 32GB, external USB can be directly stored
-*-Expansion Interface: USB2.0×2，100M/1000M LAN×1，VGA×1
-*-Alarm:1
-*-Operating Temperature: 0--40℃
-*-Storage Temperature: -20℃-65℃
-*-Power Supply Mode: AC220-DC15V adapter, 11.1V lithium battery
-*-Working Hours: 8 hours (single battery)
-*-Dimensions: 250×180×75（mm）
-*-Weight: 2.7Kg (including battery)
Transmitting Parameters
-*-Output: The differential output
-*-The Type Of Wave: Square wave
-*-Excitation PulseNumber:1-20 continuously adjustable
-*-Excitation Pulse Rate: 10KHz-150KHz continuously adjustable
-*-Excitation Pulse Strength: 300Vpp-500 Vpp
-*-Output Current: up to 15A
Receiving Parameters:
-*-Input: Differential input clamp
-*-Input Impedance:＜50Ω
-*-Repetition Frequency: 5-50Hz
-*-Sampling Frequency/Figures：20MHz/14Bits
-*-Bandwidth Range：10KHz-150KHz
-*-Detection Methods：The positive and negative detection，The detection and radio frequency waves
-*-Range stepping adjustment：1mm（transverse wave）
-*-Gain (attenuator)stepping adjustment：80dB/0.1、2.0、6.0
-*-Precision Attenuator：＜±1dB/12dB
-*-The Equivalent Input Noise：＜80×10-9V/Hz1/2
-*-Vertical Linear Error：＜3%
-*-Horizontal Linear Error:＜1%
-*-Dynamic Range:≥30dB
-*-Detection Range: Maximum 300 m
-*-Excitation Mode: Permanent magnet
-*-Offline Analysis Evaluation Function:
-*-Analysis software can work offline and easy to operate.
-*-Analyzing and evaluating all records of test results, regenerate curve and the test results
-*-Displaying channel of all data and testing parameter information
-*-Output test results and statistics report of defect.
-*-The Report Form: Word document
Application:
-Weld inspection
-Aerospace industry
-Nuclear Industry
-Shipbuilding industry
-Arsenal
-Electric Power Industry
-Petroleum Industry
-Chemical industry
Zhongke Innovation Technology Co., Ltd., abbreviated as "Zhongke Innovation", is a scientific and technological enterprise held by Chinese Academy of Sciences, and a nondestructive testing equipment manufacturer with independent intellectual property rights. Zhongke Innovation has been committed to providing the market users with various kinds of all-round, efficient, steady, reliable, safe and environment-friendly nondestructive testing solutions and products, and providing special market users with customized personalized services to help the industries such as petroleum, chemical industry, metallurgy, electric power, aviation, aerospace, railway, military industry, ship, automobile and new materials to continuously improve technology process, enhance product quality and continue to increase enterprise benefits.
In 1988, Zhongke Innovation adhered to the business concept of "Leading Technology, Integrity-based, High Quality and Efficiency, Progressive Innovation" to take the lead in independently researching, developing and manufacturing China's first digital ultrasonic testing equipment. After about 30 years of continuous innovation and market application, the company now has been developed into the benchmarking enterprise with the most excellent technological innovation capacity, the most powerful enterprise comprehensive strength, the most complete product variety system and the largest application customer group in China's ultrasonic nondestructive testing industry. Moreover, the company has several core product systems which leads the development direction of China's ultrasonic nondestructive testing technology including conventional testing equipment, high-end imaging testing equipment and all kinds of automatic detection equipment to form the whole industry chain layout from portable manual testing product to full automatic detection system and from design, research, development, manufacturing to field installation, debugging and training. The performance indicators of all core testing products have reached international advanced level, and completely conform to the certification standards of EU testing institution.
Zhongke Innovation continues to move towards the ideal. The new Ultrasonic Detection Technology Industrial Park which is invested in and built by the company has been officially put into use. The Park establishes modernized research & development bases and test equipment such as acoustical experiment center, electronic technology experiment center, mechanical design center, detecting instrument research & development center, mechanical processing center, assembly debugging center and quality detection center, etc. The use of Ultrasonic Detection Technology Industrial Park will certainly lay a solid foundation for Zhongke Innovation to improve technical innovation capacity, optimize product quality and continue to lead the technology of Chinese ultrasonic nondestructive testing technology.
