Equipment Introduction

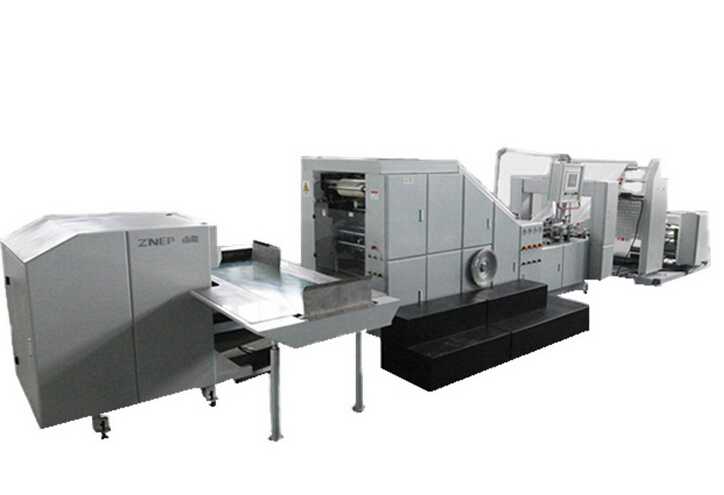

ZD-F450 Square bottom paper bag making machine is specially designed for producing paper-based environment-friendly food paper bags,shopping bags and various paper bags with handles.It can form the paper bag in one process from roll paper,edge gluing,tube forming&cutting,bottom folding&gluing to bags collection in the control of servo motors to ensure the high precision and stability,simple maintenance and high efficiency.
Technical Parameter
Roll paper width: 660-1300 mm
Paper tube length: 270-580 mm
Finished paper bag width: 260-450 mm
Bag bottom width (gusset): 70-170 mm
Paper gram: 70-150 gsm
Max. dia. of roll paper: 1200mm
Inner dia. of paper: 76mm
Max. production speed: 200 pcs/min
Total power: 18 kw
Machine Weight: 10000 kg
Overall dimension: 9500*3500*1900mm
Configuration of Equipment:
1.Shaftless roll paper feeding .
2.It adopts automatic error correction system.
3.It adopts the original German electronic control system.
4.With servo motor system
5.Man-machine touch screen interface.
6.With automatic detection of the fault.
7.With full automatic refueling system.
8.With the function of full automatic delivery system and counting system.
We are the Professional Manufacturer on paper type production line ,which has paper bag machine line,envelope machine line .paper cutting and slitting line ..our factory started on 2002. .
Our factory is in wenzhou and nanjing ,two city ..
