Equipment Introduction

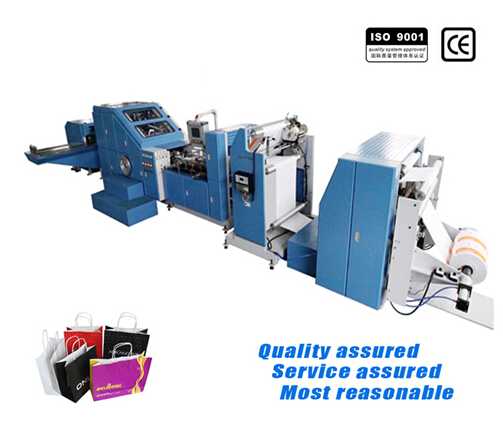

ZD-F260 Square bottom paper bag making machine is specially designed for producing paper-based environment-friendly food paper bags,shopping bags and various paper bags with handles.It can form the paper bag in one process from roll paper,edge gluing,tube forming&cutting,bottom folding&gluing to bags collection in the control of servo motors to ensure the high precision and stability,simple maintenance and high efficiency.
Technical Parameter:
Roll paper width: 380-1000 mm
Paper tube length: 280-530 mm
Finished paper bag width: 120-260 mm
Bag bottom width (gusset): 65-150 mm
Paper gram: 60-150 gsm
Max. dia. of roll paper: 1200mm
Inner dia. of paper: 76mm
Max. production speed: 230 pcs/min
Total power: 16 kw
Machine Weight: 8500 kg
Overall dimension: 9200*3200*1900mm
We are the Professional Manufacturer on paper type production line ,which has paper bag machine line,envelope machine line .paper cutting and slitting line ..our factory started on 2002. .
Our factory is in wenzhou and nanjing ,two city ..
