Quick Details
Description
- Place of Origin: Jiangxi, China (Mainland)
- Brand Name: Sunyoung
- Model Number: XGN2-10

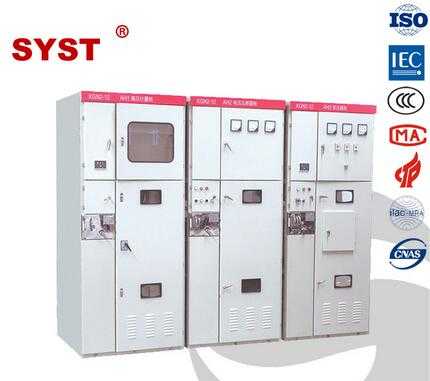

- Name: XGN2 switchgear/High voltage switchgear
- Type: Distribution Box Electrical Boxes
- Rated Voltage: 3,6,10,12KV
- Rated current: 5-3000
- Application: Electric Tools.stacking Systems
- Protection Level: IP4X/IP2X
- Usage: Electricity Transmission Project
- Surface treatment: Powder Coating
- Standard: GB3906 IEC298
- Certificate: ISO9001
General application
1:XGN2-12 is mainly used for power reception and distribution of 3-6KV-12KV 3 phase AC 50HZ indoor electric system Specially suitable for working conditions where frequent operations
2:the production is strictly designed according to I standard,also suitable for frequency Shizuku and dirty working conditions.
Structure feature
1:It is full-closed metal cabinet, meet standard GB3906 AND IEC298, Full-closed structure can provent foreign matters get into cabinet and cause circuit short-cut; Also provent human body touch to electrified body and moving parts.
2:The cabinet seperate into following main house: breaker house, generatrix house, cable house, sensor parts house, each house were seperated individually
1)breaker house: on bottom of cabinet, with pressure release channel, for gas release if electric arc happened
2)generatrix house: with over 8000N anti-bending epoxy resin support insulator
3)cabinet can operate and maintain in two open side
3)Working condition relative humidty: daily average value < 95%, monthly average value
Main technical parameter of XGN2 switchgear
|
XGN2 switchgear
|
Unit
|
Technical Parameters
|
|
Rated voltage
|
KV
|
3, 6,10,12
|
|
Maximum operating voltage
|
KV
|
3.5, 8.9,11.5
|
|
Rated current
|
A
|
5-3000
|
|
Rated breaking current
|
KA
|
16,20,31.5,40
|
|
Rated short-circuit current
|
KA
|
40,50,80,100
|
|
Rated dynamic current
|
KA
|
40,50,80,100
|
|
Rated thermal current
|
KA
|
16,20,31.5,40
|
|
Rated thermal stabilization
|
KA
|
4
|
|
Protection class
|
S
|
IP2X
|
|
Rated insulation level
|
KV
|
42/75
|
|
Mechanical life
|
time
|
10000
|
|
Dimensions Width,depth,height
|
mm
|
1100*1200*2650
|
KYN28A switchgear
|
KYN28A 12KV high voltage switchgear
|
technical Parameter
|
|
Rated voltage
|
KV
|
3.6
|
7.2
|
12
|
|
Rated short time
|
KV
|
24
|
32
|
42
|
|
Rated lighting
|
KV
|
40
|
60
|
75
|
|
Rated frequency
|
HZ
|
|
50
|
|
|
Rated current
|
A
|
630 1250 1600 2000 2500
|
|
|
Rated short circuit
|
KA
|
20 25 31.5 40 50
|
|
|
|
Rated peak value
|
KA
|
50 63 80 100 125
|
|
|
|
Rated control
|
V
|
AC110/220, DC110/220
|
|
|
|
Dimension(width*depth*height)
|
KYN28A-12
|
mm
|
(800/1000)*1500*2300
|
|
|
|
|
XGN2-12
|
mm
|
1100*1200*2650
|
|
|
|
|
HXGN-12
|
mm
|
(375/500)*900*1850
|
|
|
