Quick Details
Description
- Place of Origin: Jiangxi, China (Mainland)
- Brand Name: Sunyoung
- Model Number: KYN
- Product type: power distribution transformer price
- Standard: IEC298,GB3906-1991
- Frequency: 50 HZ/60HZ
- Rated capacity: 50,63,80,100,125,200,250,315,400
- Main cabinet type: KYN28/KYN61/GGD/XGN2
- Customized design: Available
- Main voltage range: 35KV/24KV/12KV/11KV/0.4KV
- Altitude: not more than 1000m
- Seismic intensity: not more than 8°
- Protection degree: IP2X(VCB Door Opened)
Operating Environment
1)Ambient temperature:-10°C-+40°C;
2)Altitude: high voltage ≤1000Meter, low voltage ≤2000Meter (technical department will design specially if exceeds);
3)Relative humidity:≤85%
4)Seismic intensity:≤ magnitude 8;
5)Apply to the places have no fire,no explosion danger, no serious pollution,no chemical corrosion and no violent vibration
|

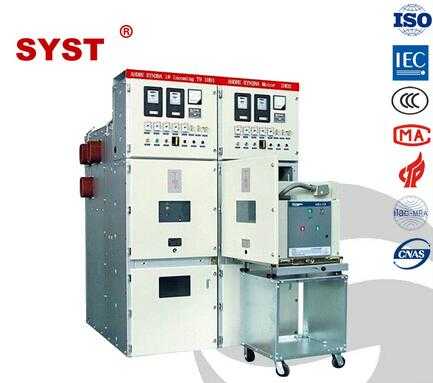

12KV high voltage indoor switchgear
|
technical Parameter
|
|
Rated voltage
|
KV
|
3.6
|
7.2
|
12
|
|
Rated short time
|
KV
|
24
|
32
|
42
|
|
Rated lighting
|
KV
|
40
|
60
|
75
|
|
Rated frequency
|
HZ
|
|
50
|
|
|
Rated current
|
A
|
630 1250 1600 2000 2500
|
|
|
Rated short circuit
|
KA
|
20 25 31.5 40 50
|
|
|
|
Rated peak value
|
KA
|
50 63 80 100 125
|
|
|
|
Rated control
|
V
|
AC110/220, DC110/220
|
|
|
|
Dimension(width*depth*height)
|
KYN28A-12
|
mm
|
(800/1000)*1500*2300
|
|
|
|
|
XGN2-12
|
mm
|
1100*1200*2650
|
|
|
|
|
HXGN-12
|
mm
|
(375/500)*900*1850
|
|
|
24KV high voltage indoor switchgear
|
24KV high voltage indoor switchgear
|
technical Parameter
|
|
Rated voltage
|
|
KV
|
24-15
|
|
Rated short time
|
KV
|
65
|
|
Rated lighting
|
|
KV
|
125
|
|
Rated frequency
|
HZ
|
50
|
|
Rated current
|
|
A
|
630 1250 1600 2000 2500
|
|
Rated short circuit
|
KA
|
25 31.5
|
|
Rated peak value
|
KA
|
63 80
|
|
Rated control
|
|
V
|
AC110/220, DC110/220
|
|
Dimension(width*depth*height)
|
KYN28A-24
|
mm
|
1000*1800*2450
|
35KV high voltage indoor switchgear
|
35KV high voltage indoor switchgear
|
technical Parameter
|
|
Rated voltage
|
KV
|
40.5-33
|
|
Rated short time
|
KV
|
95
|
|
Rated lighting
|
KV
|
185
|
|
Rated frequency
|
HZ
|
50
|
|
Rated current
|
A
|
630 1250 1600 2000 2500
|
|
Rated short circuit
|
KA
|
25 31.5
|
|
Rated peak value
|
KA
|
63 80
|
|
Rated control
|
V
|
AC110/220, DC110/220
|
|
Dimension(width*depth*height)
|
KYN61-40.5
|
mm
|
1400*2800*2600
|
Established in 2012,Jiangxi Sunyoung Electric Co.,Ltd is a technical company integrating R&D,production,sales and service.The company mainly products are high voltage switch,complete sets of equipment and all kinds inside and outside the vacuum circuit breaker of 12KV,24KV,40.5KV voltage,hundred varieties of products.All kinds of products have been extensively applied in all state power,railway construction and engineering,the rural electric reform much praise.In particular,the company independent research and development of boundary between indoor high voltage vacuum circuit breaker,high pressure have been made to the national grid company current lab smoothly through the type testing,is now a large number of market,and achieved good results.
The company through the ISO9000 international quality system certification,and always adhere to the people-oriented concept. And suit the development of market development, the production has a group of flagship product, which includes company own brand new products. Enterprise has advanced circuit breaker, testing production lines, and all kinds of advanced testing equipment more than 40 units. Established the advanced ERP network management system, and computer aided design system. Based on the strong technical force, advanced production technology, perfect detection means, excellent product quality. Growing continuously develop the market, the enterprise benefit, won wide recognition in industry and society. Won all kinds of high and new technology enterprise, specialization, the new enterprise, modern system of pilot enterprises, such as contract and keep credibility enterprise certificate.
In "high-efficient, innovation, willing, and win-win" values, the company brings together a team of professional engineers, technicians and managers, with its first-class management, first-class technology, first-class equipment, first-class staff, and always adhering to the "quality is the basic, credit is the root" of the enterprise purpose, to ensure to provide you with the best quality products and services.
