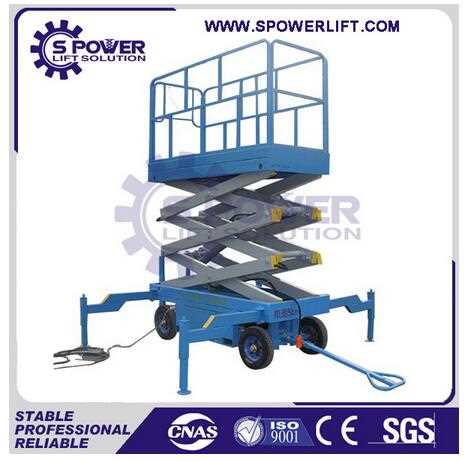

Widely used hydraulic electric power small scissor lift platform
This small scissor lift is widely used for aerial working special equipment ,aerial installation, maintenance, clean at the construction sites, workshops, warehouse,station, hotel, airport, wharf, gas station and stadium etc.
Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Spower
- Model Number: SPM0.3-7
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 300kg
- Min. Lifting Height: 4m
- Max. Lifting Height: 18m
- Table Size: 2100*9100
- Overall Dimensions: 2270*1000*1200mm
- Weight: 1200kg
- Certification: CE ISO
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Application: Aerial Work
- Color: Choice
- Product name: Widely used hydraulic electric power small scissor lift platform
- Keywords: small scissor lift
- Type: Scissor Hydraulic Lift
- Voltage: Local Voltage
- Feature: Easy Operation Safety Convenience
- Usage: Aerial Maintenance Work
- Name: small scissor lift
- Material: High Strength Manganese Steel
This small scissor lift is widely used for aerial working special equipment ,aerial installation, maintenance, clean at the construction sites, workshops, warehouse,station, hotel, airport, wharf, gas station and stadium etc.
The small scissor lift constructure make it more stable when the platform rise and down. The wide operation platform and high load to make the working range greater and for many people at the same time operation.It makes aloft work more efficient and safety more security. So it's a good equipment for aerials working .
|
Model
|
Capacity
(kg)
|
Lifting height
|
Table size(mm)
|
Total dimension
(mm)
|
|
SPM0.3-4
|
300KG
|
4M
|
2100*830mm
|
2200*1000*1130
|
|
SPM0.3-6
|
300KG
|
6M
|
2100*830mm
|
2200*1000*1270
|
|
SPM0.3-7
|
300KG
|
7M
|
2100*830mm
|
2200*1000*1270
|
|
SPM0.3-8
|
300KG
|
8M
|
2100*930mm
|
2200*1100*1380
|
|
SPM0.3-9
|
300KG
|
9M
|
2100*930mm
|
2270*1100*1380
|
|
SPM0.3-10
|
300KG
|
10M
|
2100*1200mm
|
2270*1400*1550
|
|
SPM0.3-11
|
300KG
|
11M
|
2100*1200mm
|
2270*1400*1550
|
|
SPM0.3-12
|
300KG
|
12M
|
2500*1500mm
|
2770*1750*1860
|
|
SPM0.3-14
|
300KG
|
14M
|
2500*1500mm
|
3100*1750*1800
|
|
SPM0.3-16
|
300KG
|
16M
|
2800*1600mm
|
3050*1900*2100
|
|
SPM0.3-18
|
300KG
|
18M
|
2800*1600mm
|
3350*1900*2100
|
Jinan Spower Machinery Technology (Spower Group) Is a professional manufacturer engaged in producing hydraulic lift platforms and is also the biggest producer in making aerial work platforms, hydraulic scissor lift, boom lift and dock levelers.
Spower products meet the national standard and passed ISO9001-2008 and ISO14001-2004 , ISO9001 and OECD,EPA,CARB,CE,GS certificates etc, and widely used in aerial operation and transportation of the cargo between layers on the production line such as building inner fitting up, workshop, station & port, supermarket and lobby.
