Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: SPOWER
- Model Number: SPG
- Lift Mechanism: Lift Chain
- Lift Drive / Actuation: Hydraulic
- Power: 4kw
- Rated Loading Capacity: CUSTOMIZED
- Min. Lifting Height: 60mm
- Max. Lifting Height: 20M
- Table Size: CUSTOMIZED
- Overall Dimensions: CUSTOMIZED
- Weight: 2200kg
- Certification: CE ISO
- Warranty: 12 Months
- After-sales Service Provided: Engineers available to service machinery overseas
- Application: Warehouse goods lifting
- Voltage: Local Voltage
- Type: Guide Rail
- Material: High Strength Manganese Steel
- Product name: warehouse industrial elevator lift
- Usage: Higher Level
- Feature: Easy Operation Safety Convenience
- Keywords: warehouse industrial elevator lift
- Color: Customers' Requirements
- Product: Spower warehouse industrial elevator lift
Product Application

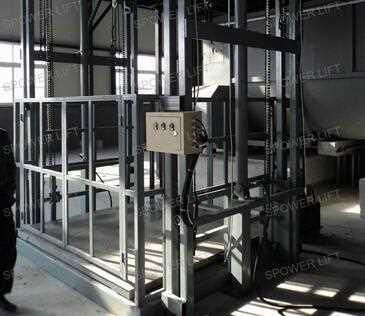

This warehouse industrial elevator lift is widely used in indoor or outdoor of the buildings and warehouse. Used to lifting the goods or pallets between the floors. To provide fast, efficient, convenient and safe access to mezzanines, basements, and any levels in multistoried building.
|
Model
|
Loading Capacity
|
Lifting height
|
|
SPG 2-5
|
2000KG
|
5000MM
|
|
SPG 1-4.5
|
1000KG
|
4500MM
|
|
SPG 5-6.5
|
5000KG
|
6500MM
|
|
SPG 3-6.5
|
3000KG
|
6500MM
|
|
SPG0.3-4.5
|
300KG
|
4500MM
|
|
SPG2-9
|
2000KG
|
9000MM
|
|
SPG0.5-3
|
500KG
|
3000MM
|
|
SPG1-3
|
1000KG
|
3000MM
|
|
Note:This cargo lift can be made according to customer requirements,please send us your interested parameters, lift height, load capacity and platform size
|
Main Feature
1. Carrying large, to achieve more control points and interactive interlock of the upper and lower floors;
2. On special occasions we need not destroy the ground floor, and it can be installed in the second floor;
3. Lifting height is high, with next to the home tank; it is durable and have long product life;
4. Blackout coming, it is manual-down, convenient, fast and practical;
5. This warehouse industrial elevator lift can be customized according to the site environment; the price is
reasonable, economical and practical.
6. The doors can be run through each other, and factory workshop can be opened inside and outside, convenient, saving space;
7. It can be installed indoor and outdoor and in special circumstances it can be attached derrick.
Safety Control
1. Hydraulic elevators not only have all safety device of the traditional elevator, but also have the special safety system hereinafter.
2. Spillover valve, it can prevent high pressure when the machine moves up.
3. Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.
4. Manual pump: it can move up the nearest floor and open the door when you meet an emergency.
5. Pipe fracture valve, when the hydraulic system pipe fracture, it can cut down the channel of the oil to stop the falling.
6. Temperature protection, when the temperature of the hydraulic oil is substandard, the warehouse industrial elevator lift will stop working until the temperature reverts to the safe standard.
Jinan Spower Machinery Technology (Spower Group) Is a professional manufacturer engaged in producing hydraulic lift platforms and is also the biggest producer in making aerial work platforms, hydraulic scissor lift, boom lift and dock levelers.
Spower products meet the national standard and passed ISO9001-2008 and ISO14001-2004 , ISO9001 and OECD,EPA,CARB,CE,GS certificates etc, and widely used in aerial operation and transportation of the cargo between layers on the production line such as building inner fitting up, workshop, station & port, supermarket and lobby.
