Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Barrel, Bottles, Cans, Cartons
- Packaging Material: Glass, Paper, Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V/380V 50HZ
- Power: 1kw, 220V/110V/380V 50HZ
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: watt
- Model Number: WTPF-1B
- Dimension(L*W*H): 800*1200*2050mm
- Weight: 260Kg, 260Kg
- Certification: ISO 9001
- After-sales Service Provided: Engineers available to service machinery overseas

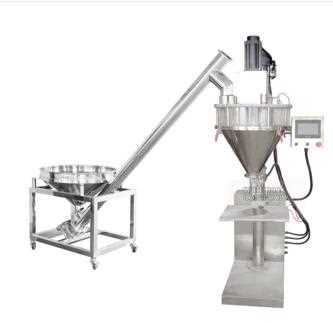

- Name: Fully Automatic Powder Filling Machine
- Style: Fully Automatic Powder Filling Machine
- Function: Fully Automatic Powder Filling Machine
- Powder Container: Bag ,tin ,can ,carton,bottle
- Metering mode: Screw rotation filling traced by weighing feedback
- Packaging weight: 10-5000g
- Packaging Speed: 10-30bottles/min
- Dimension: 800*1200*2050mm
Introduction
Stainless steel: conforming to the GMP and food health authentication, suitable for packaging the corrosion resistance chemical products.
PLC touch screen and man-machine interface: PLC works stably, anti-jamming, high weighing precision, convenient and easy operation; Weighing feedback proportion track type, overcoming the shortcoming of changes of packaging weight caused by the changes of material proportion.
Specification
Servo motor-driven: high precision location, strong torque, long life, adjustable rotational speed.
Speed reducer: low noise, long life and lifelong maintenance.
Packaging weight adjustable at any time, operating condition changeable as necessary, convenient operation
Adjustment parameter of each kind of product can be stored for later use but not more than ten.
The entire seal air damping glass and stainless steel hopper, clear sound of the material, no dust releasing, with dust exhaust apparatus at the mouth of filling, keeping the workshop clean.
Can adapt the ultra fine dust to the big pellet and so on the many kinds of materials by replacing the screw attachment.
Technical parameter:
|
Name
|
Fully Automatic Powder Filling Machine
|
|
Model
|
WTPF-1B
|
WTPF-2B
|
|
Automatic Level
|
Semi Automatic
|
Fully Automatic
|
|
Powder Container
|
Bag ,tin ,can ,carton,bottle
|
tin ,can ,carton,bottle
|
|
Metering mode
|
Screw rotation filling traced by weighing feedback
|
|
Packaging weight
|
10-5000g
|
|
Packing Precision
|
10-100g(±0.5-1g),100-1000g(±0.5%-1%),1000-5000g(
0.25%-0.5%)
|
|
Packaging Speed
|
10-30bottles/min
|
10 - 40 bottles/min
|
|
Power
|
220V/110V/380V 50HZ
|
|
Weight
|
260Kg
|
320Kg
|
|
Dimension
|
800*1200*2050mm
|
2000*970*2030mm
|
