Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, liquid and low viscosity liquid
- Packaging Type: Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch
- Packaging Material: Glass, Metal, Paper, Plastic
- Automatic Grade: Semi-Automatic
- Driven Type: Pneumatic
- Voltage: 220V/110V
- Power: 10W
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: watt
- Model Number: G1WY
- Dimension(L*W*H): 1200*500*600mm
- Weight: 30Kg, 30Kg
- Certification: ISO 9001
- After-sales Service Provided: Engineers available to service machinery overseas

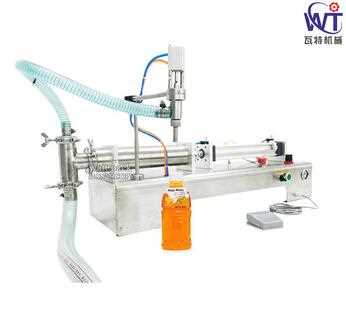

- Name: Pneumatic Manual Liquid Filling Machine
- Style: Pneumatic Manual Liquid Filling Machine
- Function: Pneumatic Manual Liquid Filling Machine
- Air source: 0.4-0.6Mpa
- Power supply: 220V/110V or fully pneumatic
- Filling accuracy: 99%
- Speed: 10-30 pcs/minute
- Dimension: 1200*500*600mm
Introduction
1.This machine is a product innovated and upgraded on the basis of this company’s series products and introduced foreign advanced filling machine technology.The product is simple and reasonable in design, high in accuracy and easy in operation.
2.Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises’ requirements.
3.This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate.
4.This machine has two filling heads in-phase, improving the work efficiency.
5.This machine reasonable in design, smart in model, easy to operate, the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan’s AirTac.
5.The part contacting materials is made of 316L stainless steel.
6.With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy.
7.Filling head adopts anti-leakage, anti-pull and with diving filling device.
Technical Parameter:
|
Name
|
Pneumatic Manual Liquid Filling Machine
|
|
Model
|
G1WY
|
WTY-1
|
G2WY
|
WTY-2
|
|
Filling Nozzles
|
1
|
1
|
2
|
2
|
|
Function
|
Tabletop
|
Have stand
|
Tabletop
|
Have stand
|
|
Application
|
Liquid or low viscosity liquid
|
|
Liquid container
|
Bottle /cup/bag/can/stand up punch ,etc
|
|
Power
|
220V/110 V/Fully Pneumatic Control
|
|
Air Pressure
|
0.4-0.6MPa
|
0.4-0.6MPa
|
0.4-0.6MPa
|
0.4-0.6MPa
|
|
Filling Accuracy
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Speed
|
10-20 Bottle/min
|
10-40 Bottle/min
|
|
Filling Volume
|
10-100ml 30-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml (price depends on the filling volume)
|
