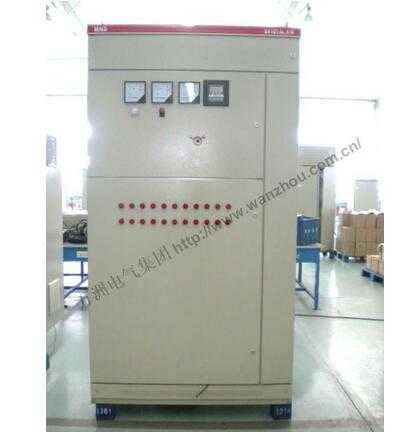

WORLDSURE Intelligent MCC electrical panel IP55 Indoor Switchgear

• Place of Origin: Hubei, China (Mainland)
• Brand Name: WORLDSURE
• Model Number: WMNS electrical panel
• Main function: intelligent MCC electrical panel
• rated voltage: <=660V
• mode of coil in and coil out: cable/bus duct(bridge)
• Ambient temperature:: -5C---+ 40C(special demand please clarify
• install place: indoor
• standard:: IEC60439; GB 7251.1
• cabinet material:: 2mm cold-rolled steel or imported galvanized alum board
• cabinet size:: to demand
• rated insulation voltage: <1000V
• aboslute attitude: <=2000m

Model :  MCC electrical panel IP55

1)main function:

1:power distribution control cabinet for power generation and supply system

2:centralized control of motor

3:reactive power compensation at same time

2)suitable place

1: all places where required high reliability and safe power distribution and motor  control.

2 :for  rated working voltage <= 660V electric system

3)cabinet characteristic

It is top world level technique ,high intelligent assemble way, easy operation and maintenance

1:all component are standard type, conveninet for project planning

2:drawer can be built up into different modes freely

3:The frame of the cabinet selects tee bend connection of 25mm modulus special C section bar, which is assembled by locking screws and high strength screws.

4:The cabinet body is made of cold rolled steel or  imported A-zinc alloy plates

5:the equipment  is with function :Anti electric arc ,earthquick resistance, oscillation reistance, shock reistance

6:The cabinet body is free of maintenance to most extent

4)drawer function:

1:each drawer is independent, and seperated entirely, and each one can exchange internally

 2:the drawer is contained of several engine function parts, it has place  with CONNECTION/ TEST/ SEPERATE/ MOVE OUT  ., and can locked seperately. the display/ control/ human-machine face to face panel are centralized  in front board

3:through hand shank and interlock, can accurately fix postion  in CONNECTION/ TEST/ SEPERATE/ MOVE OUT . each position will show directly on front panel

5)Service

install and guide user in free of charge

whole life service

Worldwide Electric Stock Co., LTD (hereinafter referred to as Worldwide Electric) was a scientific & technical joint-stock enterprise integrating scientific research and development, production and operation. Its business scope cover: electric energy saving & control for related high/low voltage components, device, system integrated whole sets, system software / hardware, systems engineering technique and R&D/ design / produce/ vendition/ consultation service/ imports and exports of products.

Worldwide Electric located in famous city Xiangyang, was established in March, 2000. It owns province class enterprise technology center, academician work station and post-doctoral industrial base at present. The employees are more than 800, and the annual turnover exceeded 80 million USD in 2011.

In the last few years, Worldwide Electric obtained national patent in 25 kinds of products. 7 products passed Hubei provincial scientific and technological achievements identification. 8 items won the Science and Technology Progress Award in Hubei province and in Xiangyang city. 3 kinds of products were certificated to be provincial famous-brand product. 17 kinds of products are listed in the national, provincial and municipal science and technology research plan, the torch plan, key new product plan, etc.

Among them,WVP series variable load phase advancer, WZBT series of rotor frequency conversion speed regulator, WGQH high voltage solid soft starter and WNK series energy recycle equipment, which we own intellectual property and patent, have strong advantage in the industry.

Worldwide Electric is not only an enterprise that grows fast and has the strongest competitiveness in the electric motor soft start field, but also has become a well-know brand enterprise in motor control and energy saving, automation of electric power systems (high/low pressure switch complete control system) and energy saving field.

Our products are widely used in building materials, chemical industry, metallurgy, mining, machinery, automobile, municipal, electric power, household appliances, and many other industries. The sales network has been throughout each province, and municipality and with a turnover of 500 million yuan. There are our customers all around the mainland of China. Some of our products have been exported to more than twenty foreign countries such as Russia, Egypt and Brazil.
