Quick Details
Description
- Place of Origin: Hubei, China (Mainland)
- Brand Name: WORLDSURE

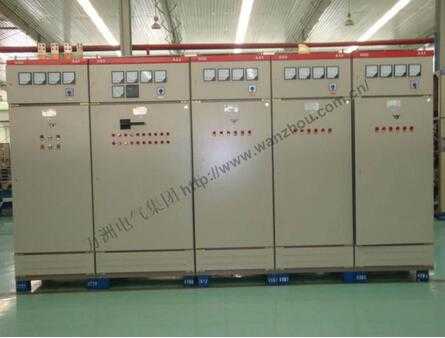

- Model Number: GGD
- Main function: power distribution,motor transformation and control
- rated voltage: 380V
- rated working current: 3150 A
- Ambient temperature: -5C---+ 40C(special demand please clarify
- install place: indoor
- standard: IEC439,GB7251
- cabinet material: 8MF cold-bending steel
- cabinet size: to demand
- cabinet color: to demand
- aboslute attitude: <=2000m
Main function and application place:
applicable to power distribution system of AC 50Hz, with rated operation voltage of 380V, rated operation current to 3150A , in power users like generators, transformer substation, mining enterprises,etc
It 's used in power transformation, distribution, control of driving motor, illumination and power distribution equipment.
the arrangment to power distribution is economic
Performance characteristic
AC low voltage distribution cabinet adopt universal chamber body, with flexible installation
scheme, will not cause any problem if any change need after first installation .
frame made from 8MF cool-bend steel.
for effective heat emission purpose, there are various emission holes on botton/top side of cabinet .
several type of breaker for choice: ME,DW15, DZ20,cw1,cm1,F,M ETC
working condition:
|
type
|
rated voltage(V)
|
rated current(A)
|
rated short circuit drop out current(ka)
|
rated short time withstand curent(Is)(KA)
|
rated peak value withstand current(ka)
|
phase
|
|
GGD1
|
380
|
1000
|
15
|
15
|
30
|
a
|
|
GGD1
|
380
|
600(630)
|
15
|
15
|
30
|
b
|
|
GGD1
|
380
|
400
|
15
|
15
|
30
|
c
|
|
GGD2
|
380
|
1500(1600)
|
30
|
30
|
63
|
a
|
|
GGD2
|
380
|
1000
|
30
|
30
|
63
|
b
|
|
GGD2
|
380
|
|
30
|
30
|
63
|
c
|
|
GGD3
|
380
|
3150
|
50
|
50
|
105
|
a
|
|
GGD3
|
380
|
2500
|
50
|
50
|
105
|
b
|
|
GGD3
|
380
|
2000
|
50
|
50
|
105
|
|
Worldwide Electric Stock Co., LTD (hereinafter referred to as Worldwide Electric) was a scientific & technical joint-stock enterprise integrating scientific research and development, production and operation. Its business scope cover: electric energy saving & control for related high/low voltage components, device, system integrated whole sets, system software / hardware, systems engineering technique and R&D/ design / produce/ vendition/ consultation service/ imports and exports of products.
Worldwide Electric located in famous city Xiangyang, was established in March, 2000. It owns province class enterprise technology center, academician work station and post-doctoral industrial base at present. The employees are more than 800, and the annual turnover exceeded 80 million USD in 2011.
In the last few years, Worldwide Electric obtained national patent in 25 kinds of products. 7 products passed Hubei provincial scientific and technological achievements identification. 8 items won the Science and Technology Progress Award in Hubei province and in Xiangyang city. 3 kinds of products were certificated to be provincial famous-brand product. 17 kinds of products are listed in the national, provincial and municipal science and technology research plan, the torch plan, key new product plan, etc.
Among them,WVP series variable load phase advancer, WZBT series of rotor frequency conversion speed regulator, WGQH high voltage solid soft starter and WNK series energy recycle equipment, which we own intellectual property and patent, have strong advantage in the industry.
Worldwide Electric is not only an enterprise that grows fast and has the strongest competitiveness in the electric motor soft start field, but also has become a well-know brand enterprise in motor control and energy saving, automation of electric power systems (high/low pressure switch complete control system) and energy saving field.
Our products are widely used in building materials, chemical industry, metallurgy, mining, machinery, automobile, municipal, electric power, household appliances, and many other industries. The sales network has been throughout each province, and municipality and with a turnover of 500 million yuan. There are our customers all around the mainland of China. Some of our products have been exported to more than twenty foreign countries such as Russia, Egypt and Brazil.
