Quick Details
Description

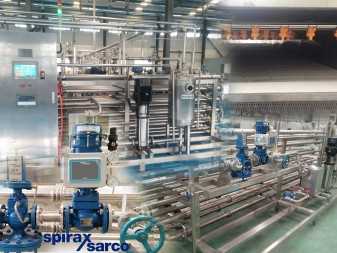

Juice sterilizing machine/ sterilizer | Jam sterilizing machine/ sterilizer Mainly composed of tube in tube heat-exchanger, feeding pump which can change speed steplessly, keeper, closed water tank, vapor and water compound heat-exchanger, controller and etc.
Application
Suitable for heat-sterilization and cooling of sauce, paste, juice concentrate, milk and other products and high-viscosity material.
Product Feature
1. High thermal efficiency & easy maintenance makes our Juice sterilizing machine/ sterilizer | Jam sterilizing machine/ sterilizer unique from others.
2. High degree of automation. From CIP cleaning of equipment, sterilization of tubes, to material sterilization, the whole process can achieve automatic control and recording. Touch screen operation.
3. Precise and reliable sterilizing temperature control: System and steam pressure, flow, material flow and other factors affecting sterilization temperature are all strictly controlled automatically.
4. Accessories are of high performance and reliability.
Specification
Specification
|
Dimension
|
7000mmx2200mmx2500mm
|
|
Power
|
25kw
|
|
Processing capacity
|
1000KG/H
|
|
Sterilizing temperature
|
108°
|
|
Sterilizing time
|
105S
|
|
Steam consumption
|
200kg/hour
|
|
NO.
|
Accessory
|
Brand
|
|
1
|
PLC
|
Siemens (Germany)
|
|
2
|
Human Machine Interface
|
Siemens(Germany)
|
|
3
|
Valves
|
SpiraxSarco (Britain)
|
|
4
|
Electric Elements
|
Schneider (France)
|
|
5
|
Central Relay
|
Omron (Japan)
|
|
6
|
Transducer
|
Fujifilm (Japan)
|
Package Includes
1. Manufacturing time: about 30 Days.
2. Ocean time: about 30 days (varies from shipping companies and natural conditions).
3. Packing Detail : the machine wiil be wrapped with plastic film and put into a wooden box.
FAQ
1. Any guarantee of Juice sterilizing machine/ sterilizer | Jam sterilizing machine/ sterilizer?
-YES, one year free maintenance and life time paid service.
2. Can the machines be specially designed for customers?
-YES. The color, mark, shape and so on can all be specially designed if customer required.
3. Package?
-The machines will be wrapped with plastic film and then put in wooden cases.
4. Shipping port?
-Shanghai. (Other ports available if required)
5. Transportation
-Normally via ocean. Air available if required by customer.
Pre-Sales Service
1. * Inquiry and consulting support.
2. * Sample testing support.
3. * Visit our Factory.
After-Sales Service
1. * Training how to instal the machine, training how to use the machine.
2. * Engineers available to service machinery overseas.
Shanghai Chase Industrial Co., Ltd. is a specialized manufacturer of fruit and vegetable processing equipment. With China’s leading fruit and vegetable processing equipment manufacturing technology, the company concentrates on providing high-quality equipment and services to fruit and vegetable processing businesses. Up to now, the company has accumulated an experience of eight years in this industry. In 2016, we established our own business center, advancing continuous development and R&D based on the achievements that we have made during the past nine years. We’re always pursuing the world’s advanced technologies, so we have succeeded in winning a share in the global manufacturing market of fruit and vegetable processing equipment, as well as favorable comments from customers.
