Quick Details
Description
- Type: Labeling Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
- Packaging Type: Case
- Packaging Material: Wood
- Automatic Grade: Semi-Automatic
- Driven Type: Electric
- Voltage: 220V/380V
- Power: 500W
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: TOPSPACK
- Model Number: TP-- DG20
- Dimension(L*W*H): 600*400*550mm
- Weight: 35 kg
- Certification: CE certificate
- After-sales Service Provided: No overseas service provided

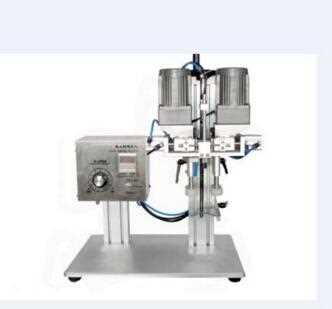

- Name: Desk type screw capping machine for glass bottles
- Capacity: 20~30 bottles/min
- Diameter of cap: 20~60mm
- Screwing wheel number: 4
- Material: SUS304 Stainless Steel
- Function: capping all kinds caps
- Motor number: 2
- Industry: Pharmaceuticals Chemical Food/ Beverage industry
This semi-automatic capping machine is suitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily chemical, pesticide and cosmetics etc. Its two adjustable speed motors are used respectively for cap supplying, bottle clamping, delivering and cap screwing. It is characterized by high level of automation, outstanding stability, easy adjustment, no need of spare parts for replacing bottle types or caps, which can be done only by adjusting.
Key features:
1. The main mechanical and electrical boxes and 304 series stainless steel support frame, floor and body constituted by the oxidation of aluminum;
2. The motor uses double motors;
3. Push cylinder AirTAC brand bearing adopts imported high bronze graphite bearing, gears with super wear-resistant steel gears;
4. Digital display panel, capping time, capping times and intervals can be adjusted;
5. There is a foot control switch; semi-automatic convertible;
6. Electrical control movement, torque adjustable. Capping speed is adjustable;
7. This model can screw duckbill cap, needle nose cap, irregular plastic cap, regular round plastic cap and so on.
Technical parameters:
|
Model
|
Semi-automatic capping machine
|
|
Capacity
|
20~30 bottles/min
|
|
Dimension
|
600*400*550mm
|
|
Diameter of cap
|
20~60mm
|
|
Screwing wheel number
|
4
|
|
Motor number
|
2
|
|
Power supply
|
220/380v, 800w, 50~60Hz(Optional)
|
|
Weight
|
35kg
|
