Quick Details
Description

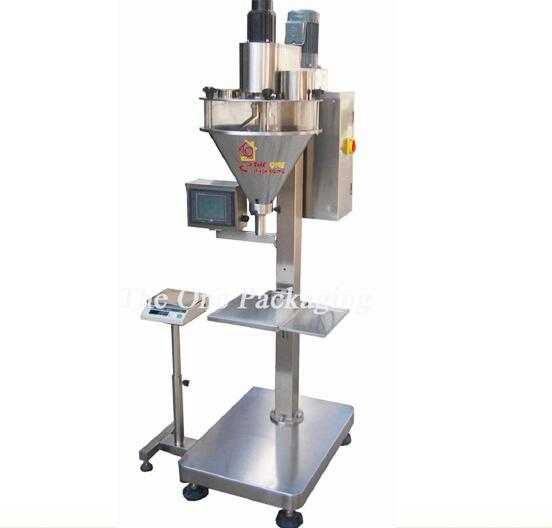

- Model NO.: TOSPF5000-1
- Automatic Grade: Automatic
- Filling Valve Head: Single-Head
- Dosing Device: Screw Filler
- Packaging Container Lifting Structure: Servo Motor
- Packaging: Bottle
- Trademark: The One
- Origin: China
- Type: Volumetric Filling Machine
- Material Type: Powder
- Feed Cylinder Structure: Single-Room Feeding
- Filling Principle: Screw Filler
- Structure: Linear
- Packaging Material: Metal,Glass,Plastic
- Specification: CE, GMP
- HS Code: 8422303001
Introduction:
The Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. Also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.
Main Features:
1. Vibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.
2. Hopper is adjustable and vibrational which make material to be flowing easily. It is good to material.
3. Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
4. Characteristic dustproof, bearing won't be polluted by the dust and powder.
5. To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, taking out the whole screw.
Technical Parameters:
Filling Weight: 10 - 5000g
Filling Accuracy: Package weight ≤ 100 Error≤ ± 0.5-1g
>100g-1000g Error≤ ± 0.5%-1%
>1000g Error≤ ± 0.25%-0.5%;
Filling Rate: 10 - 50 times/min
Power Supply: 3P 380V 50Hz/60Hz
Total Power: 1.5 Kw
Total Weight: 300Kg
Overall Dimensions: 800x980x2120mm
Hopper Volume: 45L
|
Filling Weight
|
10 - 5000g
|
|
Filling Accuracy
|
Package weight ≤100 Error≤±0.5-1g
>100g-1000g Error≤±0.5%-1%
>1000g Error≤±0.25%-0.5%;
|
|
Filling Rate
|
10 - 50 times/min
|
|
Power Supply
|
3P 380V 50Hz/60Hz
|
|
Total Power
|
1.5 Kw
|
|
Total Weight
|
300Kg
|
|
Overall Dimensions
|
800x980x2120mm
|
|
Hopper Volume
|
45L
|
Changzhou The One Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery company, that has constantly followed a path created by its own will, hard work and determination. The One Pack is involved in research, manufacturing and marketing of packaging machines.
We are specialized in packing and packaging machines including bag packaging machine, horizontal packaging machine, vertical packaging machine, rotary packaging machine, bottle packaging machine, capper, filler, rinser, unscrambler, filler and capper, tube packaging machine, labeler, processing machine, mixer, pump, vacuum homogenizer, production lines, monoblock, nonstandard machine and other kinds of packaging machines.
Here at The One Pack, our vision is to build the leading name of packaging machines of China with technology, creativity and enthusiasm. We will further grow The One Pack to a worldwide packaging machinery name through close cooperation with our internationalal partners. Today, The One packaging machines have been installed in various countries in World and are well appraised by our overseas customers. We have achieved the very important first step towards our vision.
We approach not only to supply the high-quality packaging machines, but also to provide high-quality service. Today's growth of the company is a result of regular technologies improvement and observance of the quality concept. We will try our best to meet all requirements of clients about packaging machines.
Hope to get your inquiries and we will have a happy cooperation soon!
