Quick Details
Description

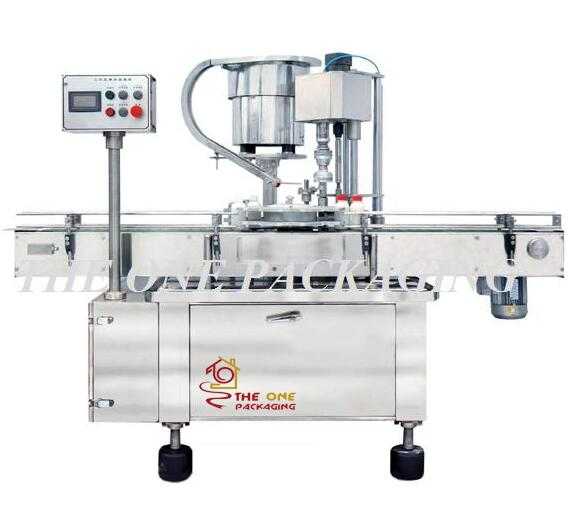

- Model NO.: TOARC-1A
- Automatic Grade: Automatic
- Application: Food, Cosmetics, Pharmacy
- Type: Cap Sealing Machine
- Transport Package: Plywood Case
- Origin: China
- Packaging: Bottles
- Packaging Material: Composite Materials
- Usage: Outpacking
- Trademark: THE ONE
- Specification: CE, GMP
- HS Code: 8422400000
Introduction:
1. This machine has one mechanical hand, dispatches caps in high speed with no inverse cap.
2. It can be divided into scrape capping and grasp capping according to different caps.
3. Clutch separate bottle and cap are not injured.
4. Production capacity: 2500bottles/hour.
Major Characteristics:
This machine has one mechanical hands, dispatches caps in high speed with no inverse cap, which can be used in various configurations containers, irregular containers. It can be divided into scrape capping and grasp capping according to different caps. Supply cap machine and mechanical hands working with synchronization. When cap tighten finished, bottle and cap relative stop. Clutch separate bottle and cap are not injured; Also this machine can suitable for three-revolving lids and special lids.
Main Performance Parameter:
1. Power supply: AC 220V; 50Hz
2. Power: 1.5Kw
3. Pneumatic (air-operated) source: 0.6MPa clean and stable compressed air
4. Suitable bottle diameter: φ 40mm~φ 100mm
5. Suitable bottle height: 60mm~230mm
6. Suitable lids diameter: φ 20mm~φ 70mm (or according to clients special requirements)
7. Suitable lids height: 15mm~30mm (or according to clients' special requirements)
8. Production capacity: 2500bottles/hour
9. Weight: 580kgs
10. Machine dimension (L× W× H): 2000mm× 1000mm× 1600mm
|
Power supply
|
AC 220V; 50Hz
|
|
Power
|
1.5Kw
|
|
Pneumatic (air-operated) source
|
0.6MPa clean and stable compressed air
|
|
Suitable bottle diameter
|
φ 40mm~φ 100mm
|
|
Suitable bottle height
|
60mm~230mm
|
|
Suitable lids diameter
|
φ 20mm~φ 70mm (or according to clients special requirements)
|
|
Suitable lids height
|
15mm~30mm (or according to clients' special requirements)
|
|
Production capacity
|
2500bottles/hour
|
|
Weight
|
580kgs
|
|
Machine dimension (L× W× H)
|
2000mm× 1000mm× 1600mm
|
