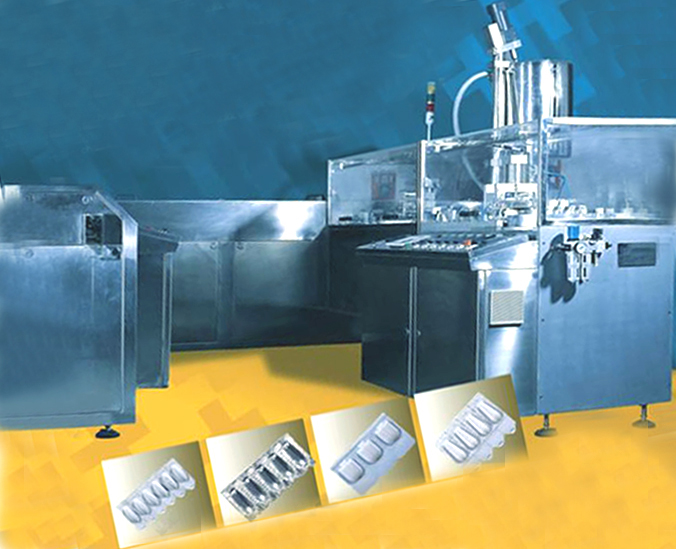

The GY-U type fully automatic suppository making production line is a type of using PLC for whole operation control and using pneumatic mode for power fully automatic production line. This equipment unified the overseas advanced technology and the domestic actual situation, the design is novel, the operation is simple, it is a type of highly effective stable fully automatic suppository production line. Rolls of the packing membrane (PVC, PVC/PE, the compound double aluminum foil) will enter into filling procedure automatically after making a statue to take shape by the machine, already stirred equally medicine fluid is filled into the cavities automatically through high accuracy metering pump, then the line of small suppository granules will be sheared into segments according to the length preestablished, and entered into condenser to lower down the temperature, in certain time through the cooling system cause the medicine fluid to coagulate, after segments of suppository granules get across the cooling equipment(the medicine fluid coagulates), enter into seal phase, simultaneously reshaping, beating batch number and further shearing to take shape.
|
Model
|
GY-U
|
|
Standard Output
|
8000-12000 grains/h
|
|
Single Grain Dosage
|
0.5~5mL
|
|
Number of Filling Nozzles
|
6
|
|
Capacity of Tank
|
50L
|
|
Allowable Error of Dosage
|
±1%
|
|
The Voltage of the Power
|
380V Three-phase AC
|
|
Total Power
|
7.5KW
|
|
Atmospheric Pressure
|
0.6Mpa
|
|
Air Consumption:
|
1.5m3/min
|
|
Water Quantity
|
800kg/h (Circulating Usage)
|
|
Total Weight
|
1550kg
|
|
Overall Dimension
|
3500mm x 3500mm x 2300mm (LxWxH)
|
|
Rolls of Material
|
PVC, PVC/PE, compound aluminum foil
|
|
Adaptable Material
|
Synthetic Fatty Glyceride, Glycerogelatin, Polyethylene Glycol, etc
|
|
Suppositories Shape
|
Bullet, Torpedo, Duck Mouth Shape and other special forms
|
