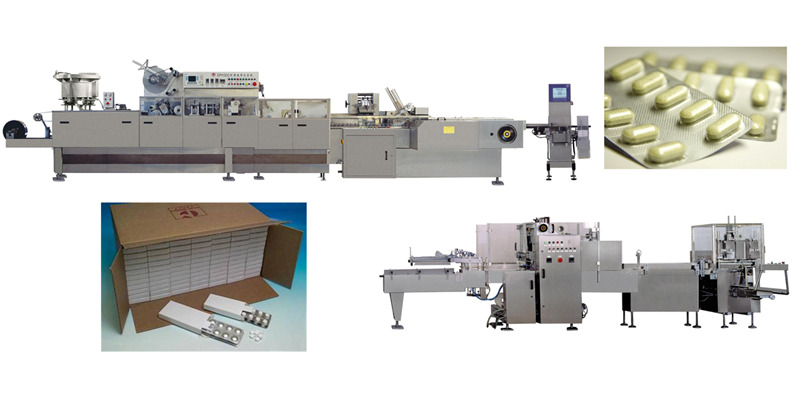

The blister packing and cartooning production line is mainly used for packing of the tablets, capsules, vial injection, ampoule injection and so on in pharmaceutical industry
The Blister packing and cartooning production line is composed of blister packing machine, plastic bag packing machine, cartoning machine, overwrapping machine, case forming machine, case filling machine, case sealing machine.
|
Blister Material
|
AL-AL, AL-PVC
|
|
Cutting Frequency:
|
20-240 plates/min
|
|
Max. Forming Depth:
|
26mm
|
|
Max. Width of the packing material:
|
260mm
|
|
Carton Size
|
L: 55-180mm, W: 30-85mm, H: 15-50mm
|
|
Overwrapping Packing Material
|
OPP, BOPP, PVC
|
|
Case Size
|
L: 200-450mm, W: 150-400mm, H: 100-350mm
|
