Quick Details
Description
This machine is mainly used for precision mould with high requirements of precision and surface quality, and used for surface complex parts and hole type.
(1) High performance resistorless power, max machining speed > 200mm2/min.
(2) Cutting accuracy≤±0.005mm.
(3) Roughness Ra≤0.6μm.
(4) Anti electrolysis power, to ensure excellent cutting surface quality.
(5) Max cutting taper ±15°/100mm.
|

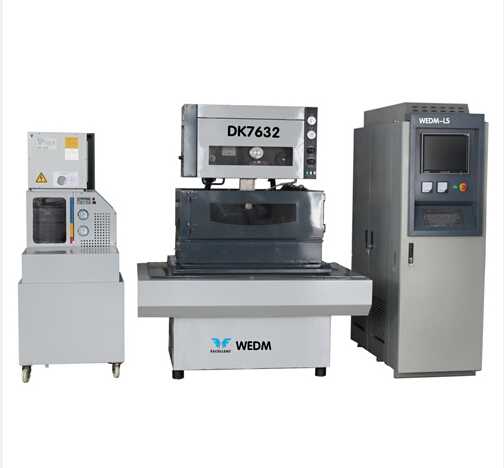

MODEL:DK7632
|
|
MACHINE PARAMETER
|
|
Work Table travel(X,Y Axis)
|
500X320 mm
|
|
U、V Axis travel
|
±50 mm
|
|
Z Axis travel
|
250 mm
|
|
Work Table dimension
|
740x490 mm
|
|
Max.Workpiece size
|
900*670*250 mm
|
|
Max.Cutting thickness
|
260 mm(210 mm fluid)
|
|
Max.Workpiece weight
|
500 kg
|
|
Max.Cutting taper
|
±15º/100 mm
|
|
Wire Tension
|
2-15N
|
|
Wire feed rate
|
1-12 m/min
|
Ningbo Bohong Machinery Manufacture Development Co., Ltd. is a joint stock company, specializing in manufacturing and developing CNC&EDM MACHINE, CNC WIRE CUT EDM Machine., High-Speed Small-Hole EDM machine.VMC
