Quick Details
Description
High-performance pulse power supply with multi-level two-range amplifier,applicable to thick jobs,the thickest being≥800mm.
Stable,efficiernt,low-loss pulse power supply,the maximum cutting efficiency being 120mm/min and the molybdenum wire lose rate≤0.01/80,000.
Backlash compensation:3B"language direct compensation,ranging from zero to nine thousand nine hundred ninety nine,as well as backlash compensation with the angle-clearing function,the allangle rotation function,the translation function,the command reverse function and the proportionate scaling function.
The fuse protection function.the automatic centralizing and edge-tracing processing and the alarm upon finished job functions.
Industrial personal computer-controlled pulse power supply,vertical case,color interface,capable of automatic editing,ISO codes compatible with 3B,4Blanguages and processing with simultaneous programming,color 3D figures and real-time cutting sample pictures tracking display.
Standard cpnfigured RS-232C interface,workable with internet accession.
Optional hard disk installation and windows desktop,multiple choices for the customers.
| Specification |
DK77100ZF |
| Working table (mm) |
1170X1700 |
| Work table travel (mm) |
1000X1200 |
| Max.thickness of workpiece(mm) |
1000 |
| Max. taper angle/plate thickness |
6°-12°/80mm |
| Max.load (kg) |
2600 |
| Optinum roughness (um) |
≤2.0 |
| Machining precision |
According to GB7926-87 standard |
| Power supply |
AC380V/220V 50Hz≤2KW |
| Control cabinet weight (kg) |
150 |
| Control cabinet dimension (mm) |
580× 600 ×1620 |
| Machine weight (kg) |
5600 |
| Machine dimension (mm) |
3000X2800X2500 |

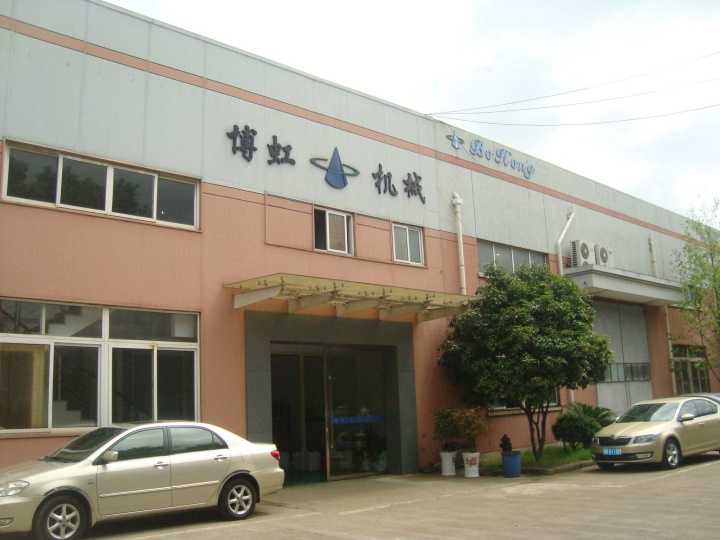

Ningbo Bohong Machinery Manufacture Development Co., Ltd. is a joint stock company, specializing in manufacturing and developing CNC&EDM MACHINE, CNC WIRE CUT EDM Machine., High-Speed Small-Hole EDM machine.VMC
Since our foundation, our company always follows the scientific concept of "honor and credibility, excelsior spirit and innovation". We have completely introduced the latest scientific technology from domestic and foreign countries, and successfully developed new products with Bohong's features. With predominant product capability and good after-sales service, Bohong's products have sold well all over the country, as well as South America, Vietnam and the Middle East. They are very popular among many customers and are more advanced than other machinery lines.
By following the basic policy of "quality first, honor and credibility top", our company has successfully achieved Bohong Machinery's target and acceptance. In 21st century with opportunity, Bohong sincerely hopes all friends from domestic and overseas to develop together and create bright future hand in hand.
