Quick Details
Description

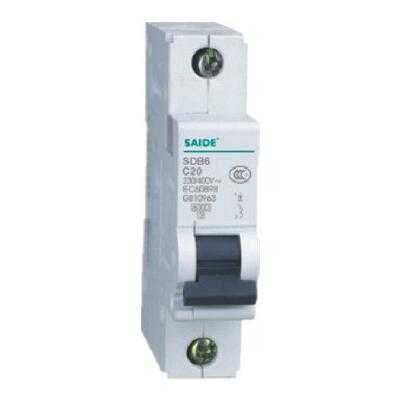

- Model NO.: SDB65-63
- Operation: Manual Type
- Arc-extinguishing Medium: Air
- Structure: MCB
- Type: Circuit Breaker
- Certification: ISO9001-2000, CE, CB, CCC
- Functional: Overload, Short-Circuit, Undervoltage
- Transport Package: Sea Worthy, Neutral, Customer Defined.
- Origin: Wenzhou, China
- Breaking Capacity: Low Voltage Circuit Breakers
- Speed: Normal Type Circuit Breaker
- Installation: Fixed
- Poles Number: 1
- Function: Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
- Color: Black, White
- Trademark: SAIDE
- Specification: IEC60947-2/GB14048.4, CE, Rohs
- HS Code: 8536200
Miniature circuit breakers are mechanical switching devices able to switch, conduct and switch-off the current under normal conditions, and able to switch, conduct and automatically switch-off the current under abnormal circuit conditions, such as short circuit.
Miniature circuit breakers are suitable for protection from overload and short circuit. Method of connection: for AC MCBs optional, the input and output terminals can be changed.
Technical Data
Standard: IEC60898-1,GB10963
Pole No.: 1P, 2P, 3P, 4P
Rated voltage: 240/415V AC
Rated current(A): 10,13,16,20,25,32,40,50,63
Tripping curve: B, C, D
Rated short-circuit capacity(Icn): 3-4.5Ka
Rated frequency: 50/60Hz
Rated impulse withstand voltage: 6.2kV
Electro-mechanicla endurance: 4000
|
Frame class
|
63A
|
|
Rated working voltage
|
240V/415V
|
|
Rated frequency
|
50/60Hz
|
|
Rated working current
|
6,10,16,20,25,32,40,50,63A
|
|
Rated short-circuit breaking capacity
|
6Ka
|
|
Poles
|
1,2,3,4P
|
|
Mechanical life
|
10000
|
|
Electric life
|
4000
|
Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.
We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.
With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
