Quick Details
Description

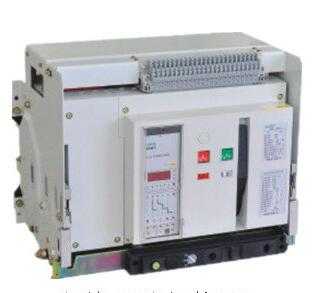

- Model NO.: DW45-3200
- Operation: Manual Type
- Arc-extinguishing Medium: Air
- Structure: ACB
- Type: Circuit Breaker
- Certification: ISO9001-2000, CE, CB, CCC
- Functional: Overload, Undervoltage, Short-Circuit
- Warranty Time: 2 Years
- Trademark: SAIDE
- Specification: IEC60947-2/GB14048.4, CE, Rohs
- HS Code: 8536200
- Breaking Capacity: Low Voltage Circuit Breakers
- Speed: Normal Type Circuit Breaker
- Installation: Insert
- Poles Number: 3
- Function: Circuit-Breaker Failure Protection
- Color: White
- Structural Max Current: 3200AMP
- Service: OEM&ODM
- Transport Package: Sea Worthy, Neutral, Customer Defined.
- Origin: Wenzhou, China
1.Application
DW45 series universal circuit breaker(hereinafter referred to as breaker)is suitable
for the circuit of AC 50Hz with rated voltage 400V, 690V and rated current up to 6300A.
It is mainly used to distribute electric energy and protect circuits and power-supply
equipment from overload, under-voltage, short-circuit and single-phase earthing. with
intelligentized and selective protection functions, the breaker can improve the reliability
of power supply, and avoid unnecessary power failure. The breaker is applicable for
power stations, factories, mines(for 690V) and modern high-buildings, especially for the
distribution system of intelligentized building. This breaker conforms to IEC60947-2 and
GB14048.2. The whole series have past CCC certification.
2.Technical date sheet
|
Model
|
DW45-3200
|
|
| |
|
Structural level max current
|
3200
|
|
| |
|
Rated current In(A)
|
2000,2500,3200,4000
|
|
| |
|
Rated voltage Ue(V)
|
AC400,AV690
|
|
|
Rated insulation voltage Ui(V)
|
1000
|
|
| |
|
Rated voltage withstand voltage Umip(kV)
|
8000
|
|
|
Rated ultimate short-circuit breaking capacity Icu(kA)
|
100
|
|
|
65
|
|
|
Rated working short-circuit breaking capacity Ics(kA)
|
80
|
|
|
50
|
|
|
Rated short period withstand current Icw(kA)
|
80
|
|
|
50
|
|
|
Wiring type
|
Upper wiring & lower wiring
|
|
|
Arc distance (mm)
|
0
|
|
|
working lifespan
|
Electrical
|
500
|
|
|
Mechanical
|
4500
|
|
|
Power comsuption(W)
|
1200
|
|
3.Categories of Intelligent Air Circuit Breaker(ACB)
1. Our air circuit breaker can be of two installation types: fixed type and draw-out type
2. Number of poles: 3 pole and 4 pole
3. Operation type: manual operation, auto operation
4. Trip types: Intelligent controller, under voltage instant ( or time delay type) trip and shunt trip
