1. Features: --- Heavy duty scissor platform is used to convey the goods from the ground to working level. ---The control panels are available at the designated floors and one the lift platforms. ---Installed in the pit, do not occupy space. ---When lifting, up, down and stop three buttons control the lift. ---Load capacity, platform size and lifting height can be chosen according to your actual needs. 2. Safety Precaution: --- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture. --- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure. --- Emergency decline valve: it can go down when you meet an emergency or the power off. --- Anti-dropping device: Prevent falling of platform 3. Model list-for your reference Pls note: The lift table is customized, so pls kindly confim the lifting height, platform size and load capacity you need.
Model
Load
Platform size
Lifting height
No-working height
Power
SSL3-2.4
3T
2.0*2.0M
2.4M
660MM
4KW/380V
SSL2-5.0
2T
2.1*1.2M
5.0M
870MM
SSL3-6.5
2.2*1.9M
6.5M
1520MM
5.5KW/380V
SSL1.5-3.8
1.5T
2.2*2.0M
3.8M
700MM
SSL2-6.0
2.0*1.3M
6.0M
1200MM
SSL1.5-0.8
2.0*1.5M
0.8M
500MM
3KW/380V
SSL1 -4.3
1T
2.0*1.8M
4.3M
800MM

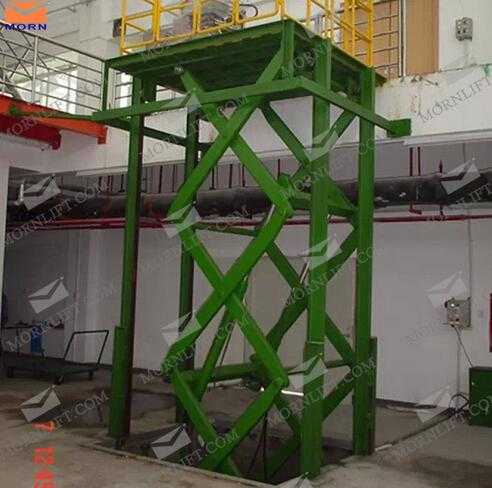

4. Product in application Many clients installed our lift table into a pit to convey the goods from the ground to working level.
Jinan Morn Technology Co., Ltd. is located in Industrial Machinery Park High-tech Zone of Jinan city. It is 30 minutes' journey by vehicle to the Airport and Railway Station. Jinan Morn Technology Co., Ltd. is a professional manufacturer engaged in producing hydraulic lift platforms and is also the biggest producer in making aluminum aerial work platforms, cylinder hydraulic aerial work platforms and dock levelers. Our company is a member of China Association of Warehouses and Storage. With excellent facilities, advanced techniques, full-scale after-sale services, tremendous technology, all of our products have passed the detection of Check Station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China. Our company has got the 2000 Quality System Certification of ISO9001. We have passed the testament of CE Quality Community. Our products are compartmentalized to FIVE BIG SERIES and FIFTY VARIETIES. Its quality and capability had been tested by using in several international projects. Our machine can be burdened the maximum load 10 tons and was awarded the first-class prize of Shandong Mechanical Designing Competition. We have got a reputation by selling our goods towards domestic market and overseas market such as: America, Canada, and German. We can custom-build Good Safety & High Efficiency machine for you.
