Quick Details
Description
- Model NO.: scissor lift table
- Lift Mechanism: Scissor Lift
- Moves: Stationary
- Running Mode: Stationary
- Certification: CE, ISO 9001
- Max Load Capacity: 2000kg
- Lifting Point: Four Points for Easy Hoist
- Lift Speed: 3-6m/Min
- Painting: Epoxy Paint
- Color: Yellow, Blue, Green, Black as Your Requirement
- Transport Package: Plywood Case
- Origin: Jinan, China
- Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Carrying Capacity: Special Weight Level
- Driven Type: Hydraulic
- Feature: Explosion-Proof
- Platform: Antiskid
- Installation: in a Pit
- Guardrail(Optional): 1100mm
- Surface: Rust-Proof
- Voltage: 220V/380V, AC Power, 1 or 3 Phase, Can Also Be Mad
- Trademark: Morn
- Specification: CE
- HS Code: 84289090
1. Features:

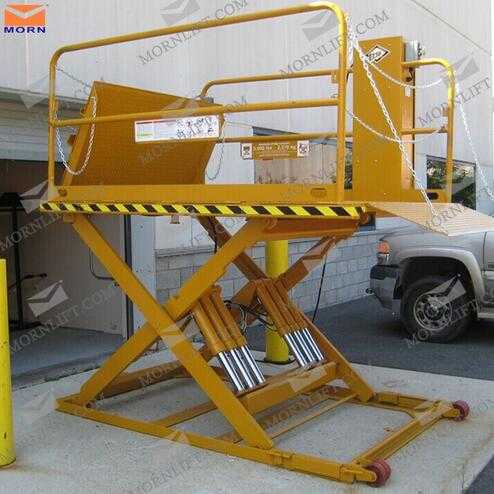

---Heavy duty scissor platform is used to convey the goods from the ground to working level.
---The control panels are available at the designated floors and one the lift platforms.
---Installed in the pit, do not occupy space.
---When lifting, up, down and stop three buttons control the lift.
---Load capacity, platform size and lifting height can be chosen according to your actual
needs.
2. Safety Precaution:
--- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
--- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the
pressure.
--- Emergency decline valve: it can go down when you meet an emergency or the power off.
--- Anti-dropping device: Prevent falling of platform
3. Model list-for your reference
Pls note: The lift table is customized, so pls kindly confim the lifting height, platform size
and load capacity you need.
|
Model
|
Load
|
Platform size
|
Lifting height
|
No-working height
|
Power
|
|
SSL3-2.4
|
3T
|
2.0*2.0M
|
2.4M
|
660MM
|
4KW/380V
|
|
|
SSL2-5.0
|
2T
|
2.1*1.2M
|
5.0M
|
870MM
|
4KW/380V
|
|
|
SSL3-6.5
|
3T
|
2.2*1.9M
|
6.5M
|
1520MM
|
5.5KW/380V
|
|
|
SSL1.5-3.8
|
1.5T
|
2.2*2.0M
|
3.8M
|
700MM
|
4KW/380V
|
|
|
SSL2-6.0
|
2T
|
2.0*1.3M
|
6.0M
|
1200MM
|
4KW/380V
|
|
|
SSL1.5-0.8
|
1.5T
|
2.0*1.5M
|
0.8M
|
500MM
|
3KW/380V
|
|
|
SSL1 -4.3
|
1T
|
2.0*1.8M
|
4.3M
|
800MM
|
4KW/380V
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
4. Control mode:
There are two control boxes, one is on the ground, another is on the platform.
There are total three control buttons, UP & DOWN & STOP.
5.After-sales Services
--- User-friendly English manual for machine using and maintenance.
--- One year warranty for whole machine without man-made fault;
--- We will send you parts for free if there are any nonhuman factors problem
during warranty time
--- 24-hours technical support by email, telephone or other communication online.
---We could reply you in 2 hours after received your any questions even on weekend and
holiday, engineers are available to your country if necessary.
Jinan Morn Technology Co., Ltd. is located in Industrial Machinery Park High-tech Zone of Jinan city. It is 30 minutes' journey by vehicle to the Airport and Railway Station.
Jinan Morn Technology Co., Ltd. is a professional manufacturer engaged in producing hydraulic lift platforms and is also the biggest producer in making aluminum aerial work platforms, cylinder hydraulic aerial work platforms and dock levelers. Our company is a member of China Association of Warehouses and Storage. With excellent facilities, advanced techniques, full-scale after-sale services, tremendous technology, all of our products have passed the detection of Check Station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China. Our company has got the 2000 Quality System Certification of ISO9001. We have passed the testament of CE Quality Community.
Our products are compartmentalized to FIVE BIG SERIES and FIFTY VARIETIES. Its quality and capability had been tested by using in several international projects. Our machine can be burdened the maximum load 10 tons and was awarded the first-class prize of Shandong Mechanical Designing Competition. We have got a reputation by selling our goods towards domestic market and overseas market such as: America, Canada, and German. We can custom-build Good Safety & High Efficiency machine for you.
