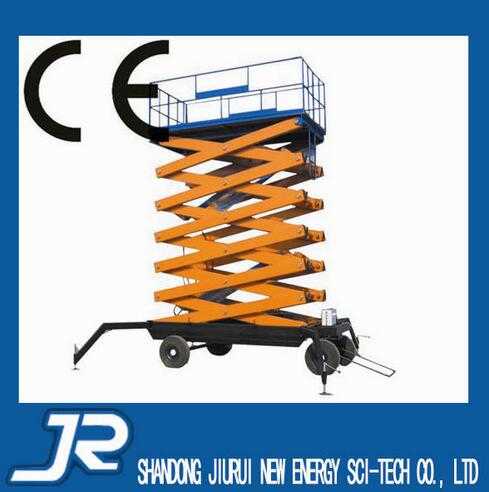

SJY0.3-18 Diesel Powered Mobile Hydraulic Electric Scissor Lift
Scissor lift platform mainly used in logistics industry, production assembly line, the basement to the floor of the goods between the lifting, loading and unloading, also used for the lifting control.This product has the stable struction, low error rate, reliable opertion, safety, easy maintenance.
Quick Details
Description
- Model NO.: SJY0.3-18
- Lift Mechanism: Scissor Lift
- Moves: Moving
- Running Mode: Moving
- Certification: CE, ISO 9001
- Lift Height: 6m
- Overall Size: 3.7*2.1*2.6m
- Weight: 420kg
- Warranty: 1 Year
- Load Capacity: 500kg
- Transport Package: Polywood Packing
- Origin: China
- Application: Workshop Crane, Warehouse Crane, Building Crane
- Carrying Capacity: Weight Level
- Driven Type: Hydraulic
- Feature: Insulating
- Model: Sjy0.5-6
- Platform Size: 1.5*1m
- Color: Red, Blue, Orange
- Power: 380V 2.2kw
- Certificate: Ce
- Trademark: JIURUI
- Specification: 3.7*2.1*2.6m
- HS Code: 8428909090
Four wheel scissor lift is suitable used for aerial installation & maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse,Special Area.
|
Model
|
Lift platform dimension(mm)
|
Overall dimension(mm)
|
Lift height(m)
|
Load capacity(kg)
|
Body weight(kg)
|
Power
|
|
SJY0.3-4
|
1500*750
|
1700*900*1100
|
4
|
300
|
400
|
220V/2.2KW
|
|
SJY0.3-6
|
1500*750
|
1700*900*1290
|
6
|
300
|
650
|
220V/2.2KW
|
|
SJY0.3-8
|
1640*750
|
1800*900*1390
|
8
|
300
|
720
|
220V/2.2KW
|
|
SJY0.3-10
|
2100*1200
|
2600*1500*1500
|
10
|
300
|
1500
|
220V/2.2KW
|
|
SJY0.3-12
|
2530*1500
|
2950*1950*1740
|
12
|
300
|
2600
|
380V/3KW
|
|
SJY0.3-14
|
2750*1500
|
3250*1950*1970
|
14
|
300
|
2900
|
380V/3KW
|
|
SJY0.3-16
|
2820*1500
|
3600*1980*2030
|
16
|
300
|
3600
|
380V/4KW
|
|
SJY0.3-18
|
2900*1500
|
3700*1980*2500
|
18
|
300
|
3900
|
380V/5.5KW
|
|
SJY0.5-10
|
2120*1200
|
2600*1500*1530
|
10
|
500
|
1500
|
380V/2.2kw
|
|
SJY0.5-12
|
2550*1500
|
3150*2000*2850
|
12
|
500
|
2800
|
380V/3kw
|
|
SJY1.0-10
|
2220*1220
|
2820*1720*2850
|
10
|
1000
|
2480
|
380V/kw
|
|
SJY1.0-12
|
2600*1500
|
3200*2015*3090
|
12
|
1000
|
3680
|
380V/5kw
|
Application
Scissor lift platform mainly used in logistics industry, production assembly line, the basement to the floor of the goods between the lifting, loading and unloading, also used for the lifting control.This product has the stable struction, low error rate, reliable opertion, safety, easy maintenance.
