Quick Details
Description
- Model NO.: SJY0.3-6
- Lift Mechanism: Scissor Lift
- Moves: Moving
- Running Mode: Moving
- Certification: CE
- Lift Height: 6m
- Overall Size: 3.7*2.1*2.6m
- Weight: 420kg
- Warranty: 1 Year
- Load Capacity: 300kg
- Transport Package: Polywood Packing
- Origin: China
- Application: Workshop Crane, Warehouse Crane, Building Crane
- Carrying Capacity: Weight Level
- Driven Type: Hydraulic
- Feature: Insulating
- Model: Sjy0.3-6
- Platform Size: 1.5*1m
- Color: Red, Blue, Orange
- Power: 380V 2.2kw
- Certificate: Ce
- Trademark: JIURUI
- Specification: 3.7*2.1*2.6m
- HS Code: 8428909090

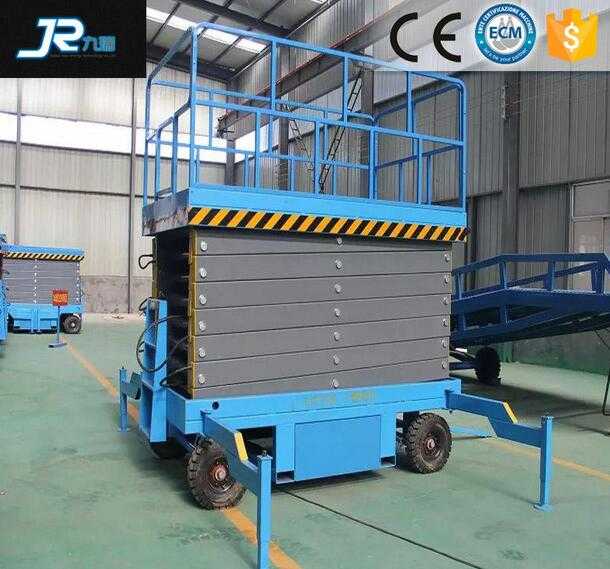

Four wheel scissor lift is suitable used for aerial installation & maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse,Special Area.
|
Model
|
Lift platform dimension(mm)
|
Overall dimension(mm)
|
Lift height(m)
|
Load capacity(kg)
|
Body weight(kg)
|
Power
|
|
SJY0.3-4
|
1500*750
|
1700*900*1100
|
4
|
300
|
400
|
220V/2.2KW
|
|
SJY0.3-6
|
1500*750
|
1700*900*1290
|
6
|
300
|
650
|
220V/2.2KW
|
|
SJY0.3-8
|
1640*750
|
1800*900*1390
|
8
|
300
|
720
|
220V/2.2KW
|
|
SJY0.3-10
|
2100*1200
|
2600*1500*1500
|
10
|
300
|
1500
|
220V/2.2KW
|
|
SJY0.3-12
|
2530*1500
|
2950*1950*1740
|
12
|
300
|
2600
|
380V/3KW
|
|
SJY0.3-14
|
2750*1500
|
3250*1950*1970
|
14
|
300
|
2900
|
380V/3KW
|
|
SJY0.3-16
|
2820*1500
|
3600*1980*2030
|
16
|
300
|
3600
|
380V/4KW
|
|
SJY0.3-18
|
2900*1500
|
3700*1980*2500
|
18
|
300
|
3900
|
380V/5.5KW
|
|
SJY0.5-10
|
2120*1200
|
2600*1500*1530
|
10
|
500
|
1500
|
380V/2.2kw
|
|
SJY0.5-12
|
2550*1500
|
3150*2000*2850
|
12
|
500
|
2800
|
380V/3kw
|
|
SJY1.0-10
|
2220*1220
|
2820*1720*2850
|
10
|
1000
|
2480
|
380V/kw
|
|
SJY1.0-12
|
2600*1500
|
3200*2015*3090
|
12
|
1000
|
3680
|
380V/5kw
|
Application
Scissor lift platform mainly used in logistics industry, production assembly line, the basement to the floor of the goods between the lifting, loading and unloading, also used for the lifting control.This product has the stable struction, low error rate, reliable opertion, safety, easy maintenance.
Shandong Jiurui New Energy Science Technology Co., Ltd. is specialized in researching, developing, manufacturing and sales of wire mesh belt and kinds of conveyor equipment such as roller conveyor, PVC belt conveyor, mesh belt conveyor, chain plate conveyor, as well as mesh belt fuit and vegetable washing machine and fruit processing line etc.
We have 20 years of experience of wire mesh belt designation and manufacturing, and provide the conveyor belt to many profession's original equipment manufactures and the terminal customer, these professions include: Cures, fries in oil, cooling, the oven, the instant freezer, the heat treatment, the glassware, the electronic component, the powder metallurgy, the casting, the ramming, the iron filings detachment, forging, the waste recovery and so on.
