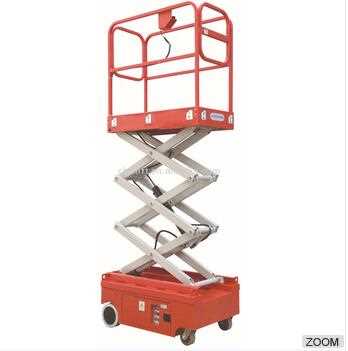

• SJJ30/39 300KGS Full Electric Aerial Platform Small Scissor Lift

SJJ30/39 300KGS Full Electric Aerial Platform Small Scissor Lift

Place of Origin: Zhejiang, China (Mainland); Brand Name: CHOLIFT/OEM/ODM; Model Number: SJJ30/39;

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CHOLIFT/OEM/ODM
  • Model Number: SJJ30/39
  • Small Scissor Lift capacity: 300kgs
  • truck Lift max. platform height:3000mm/3900mm
  • Small Scissor Lift max. working height:5000mm/5900mm
  • Small Scissor Lift overall length: 1180
  • Small Scissor Lift overall width: 760
  • Small Scissor truck platform size:1180x760mm
  • Small Scissor Lift ground clearance:60mm
  • Small Scissor Lift min. turning radius:1200mm
  • Small Scissor Lift color: orange/optional
  • Small Scissor Lift driving motor: 2x24/0.4w



1. Product details:

Canbus technology

Proportional controls

Safety brackets

low voltage alarm

Emergency down button

Charger protection

Controller temperature protection

Over loading protection



2.Technical Parameter:

Model



SJJ3

SJJ3-9



Capacity

kg

300

300



Working height

mm

5000

5900



Platform  height

mm

3000

3900



Overall length

mm

1180

1180



Overall width

mm

760

760



Overall height

mm

1830

1930



Platform size

mm

1180X760

1180X760



Ground clearance

mm

60

60



Min. turning radius

mm

1200

1200



drving motor

VDC/KW

2X24/0.4

2X24/0.4



Up/Down speed

sec

24/15

24/15



Batteries

V/Ah

2X12/80

2X12/80



charger

V/A

24/15

24/15



Wheel

mm

Φ230X80

Φ230X80



Weight

kg

490

600



SJJ30/39 300KGS Full Electric Aerial Platform Small Scissor Lift

Company Profile

Our factory is a highly professional and experienced manufacturer of handling equipments, The products include series of electric pallet truck, electric stacker and a series of hand pallet truck, lift table, stationary lift table, semi electric stacker and reach stacker and other material handling equipments.

Factory located in the hometown of pallet trucks, Ninghai, Zhejiang, is a national high-tech enterprises. offering one stop services in warehouse solution. Our innovation is on pallet trucks. Stackers take fresh idea in this industry for higher efficiency, less maintenance time, and long operation life. In the past 3 years, our fast development has made CHOLIFT widely accepted and recognized in both China and overseas markets. Led by Chairman Mr. Chu Guanghui, adhering to the tenet of advanced technology, reputation first, we focus on enterprise brand and good quality system construction to strive to create a leading team which is better than others in everything. We are equipped with advanced production equipment, perfect crafts, more than 50 sets of advanced large intelligent equipment, and more than 10 sets of advanced special testing equipment. We adopt internationally advanced standards as the technical indexes of our products. The advanced design ideas we hold can rival the international first-class standard. With advanced management systems and software, we reduce many intermediate links, and the work efficiency has been highly raised.

Our company has passed ISO9001:2008 quality system authentication. Products of 4 categories, including 20 series of 100 varieties, are widely applied to various places of modern logistics, and most of them get CE and GS certifications of TUV AUSTRIA.

Holding the enterprise spirit of "Innovation for development, Quality for survival" and the service concept of "production turns around sale, sale turns around the market, aiming at the international high-end market", we are committed to creating an excellent brand, in the world famous logistics warehousing equipment manufacturing industry.
